PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade

SKU:PUL-56df7d

Premium-grade PullPro™ 316 Stainless/Bronze Rope Sheave Bushing for precise, durable performance in various applications.

Regular price $89.99
Regular price Sale price $89.99
Sale

Initiate Order

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade

$89.99

Quantity: 1

Claim Your Seller Account

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

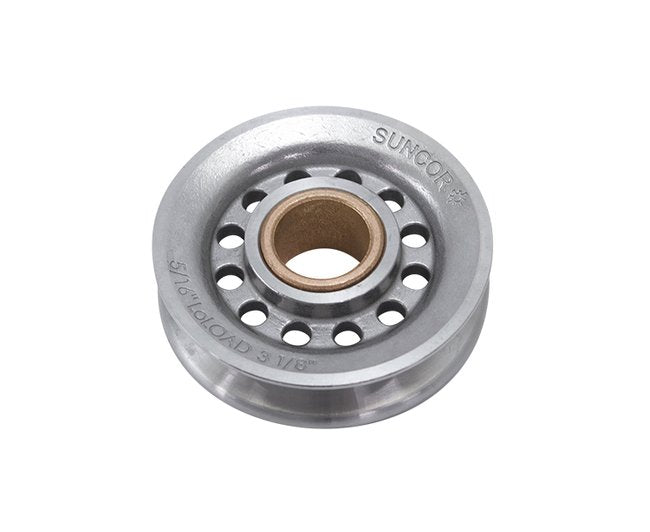

The PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing is engineered for precision and durability, accommodating rope sizes from 3/8" to 1". Crafted from grade 316 stainless steel for superior corrosion resistance and lead-free oil-impregnated bronze bushing for high load capacity. Its robust design supports side loads, reduces friction, and ensures long-lasting performance. The versatile hub styles cater to specific applications, offering optimal weight distribution, groove diameter, and throat angle.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Ready to Grow Without Cash Flow Constraints?

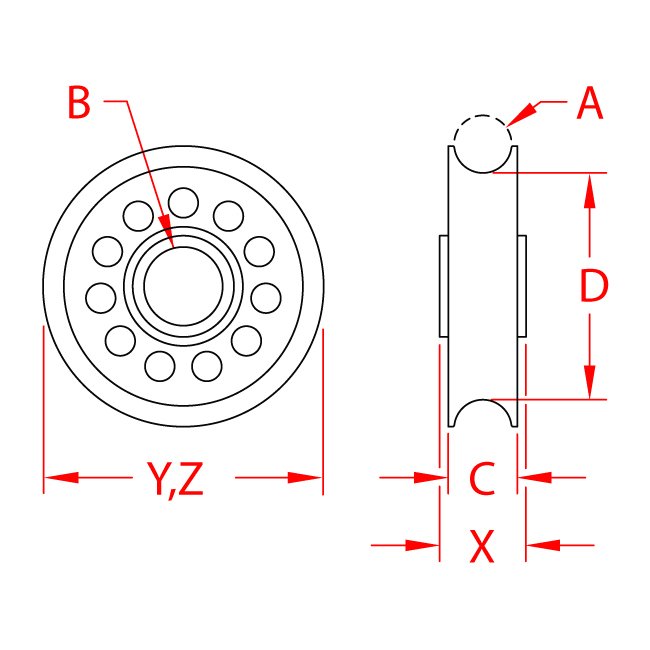

Product Specifications

Note
All dimensions are nominal (± 3%) and are subject to change without notice.Includes Spacer
Specifications Bushing Material
Bronze
Specifications Dimension B
1.00 in
Specifications Dimension C
1.26 in
Specifications Dimension D
4.00 in
Specifications Dimension X
1.40 in
Specifications Dimension Y
5.00 in
Specifications Dimension Z
5.00 in
Specifications Material
316 Stainless Steel
Specifications Pulley Type
Rope
Specifications Rope Size A
1 in
Specifications Spacer Part
S0429-253135
Specifications Weight
2.76 (lb)
Specifications Working Load Limit Wll
5500 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
