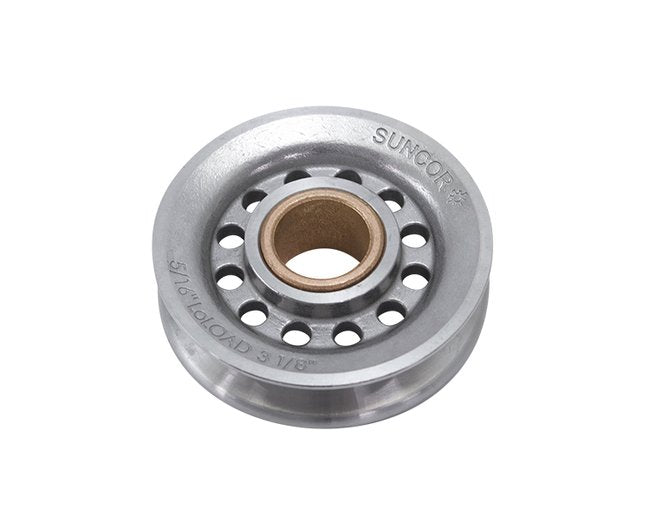

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade

Name: PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade
Brand: Suncor Stainless, Inc.
SKU: PUL-f50f4e
Price: 49.99 USD
Availability: OutOfStock

SKU:PUL-f50f4e

Enhance project performance with our durable grade 316 stainless steel/brown rope sheave bushing.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your project with the PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing, designed for optimal performance and durability. Made of grade 316 stainless steel for corrosion resistance and featuring a lead-free oil impregnated bronze bushing for high load applications, this sheave ensures smooth operation. With a robust construction to handle side loads and reduce friction, the PullPro™ premium sheave provides versatility, safety, and longevity. Choose from a range of sizes and hub styles tailored to your specific application needs.

Product Specifications

Note

All dimensions are nominal (± 3%) and are subject to change without notice.Includes Spacer

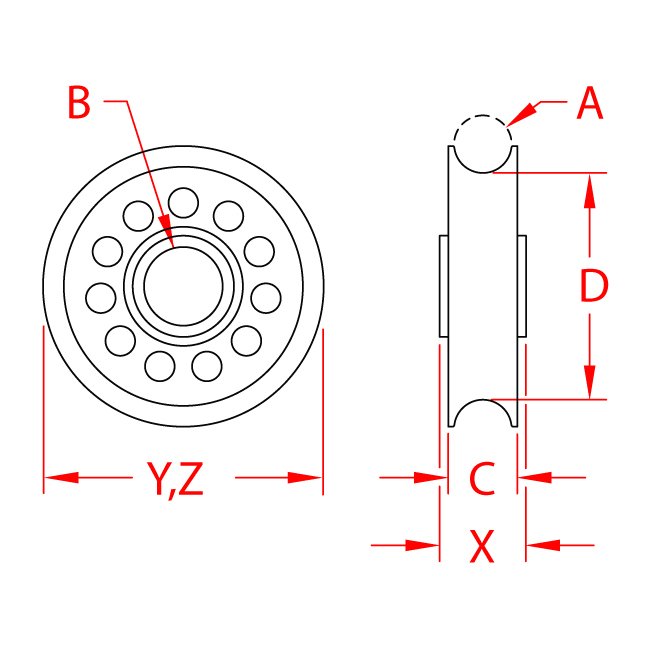

Specifications Bushing Material

Bronze

Specifications Dimension B

0.50 in

Specifications Dimension C

0.77 in

Specifications Dimension D

2.53 in

Specifications Dimension X

0.86 in

Specifications Dimension Y

3.13 in

Specifications Dimension Z

3.13 in

Specifications Material

316 Stainless Steel

Specifications Pulley Type

Rope

Specifications Rope Size A

5/8 in

Specifications Spacer Part

S0429-132222

Specifications Weight

0.73 (lb)

Specifications Working Load Limit Wll

3000 lb

CAGE

1CXX6

NAICS

332999

PSC

5340

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade
