PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade

SKU:PUL-3e6b4d

Premium grade PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - top durability, corrosion resistance, and high load capacity for industrial projects.

Regular price $59.99
Regular price Sale price $59.99
Sale

Initiate Order

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade

$59.99

Quantity: 1

Claim Your Seller Account

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

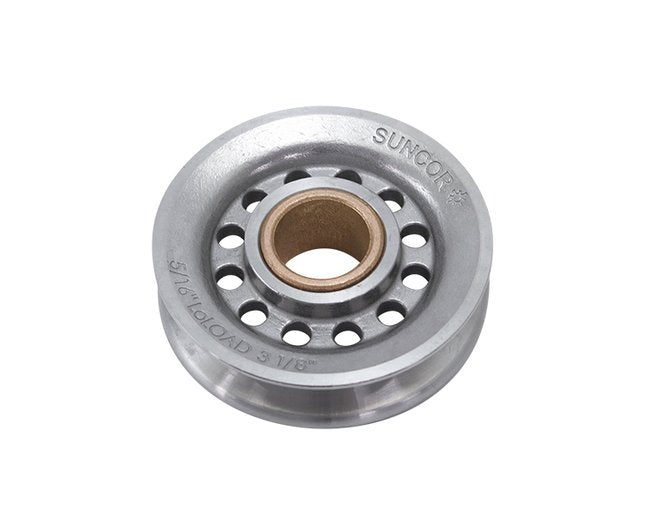

The PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing is a top-tier solution designed for heavy-load, slow turning applications. Crafted from grade 316 stainless steel with a lead-free oil impregnated bronze bushing, this sheave offers exceptional corrosion resistance, durability, and high load capacity. The thick-walled bronze bushing reduces friction, supporting side load wear. With a range of sizes and hub styles, this premium sheave ensures a perfect fit for any project, promoting safety, longevity, and optimal performance. Tailored for industrial applications, this sheave excels in meeting stringent institutional procurement requirements.

Product Specifications

Note
All dimensions are nominal (± 3%) and are subject to change without notice.

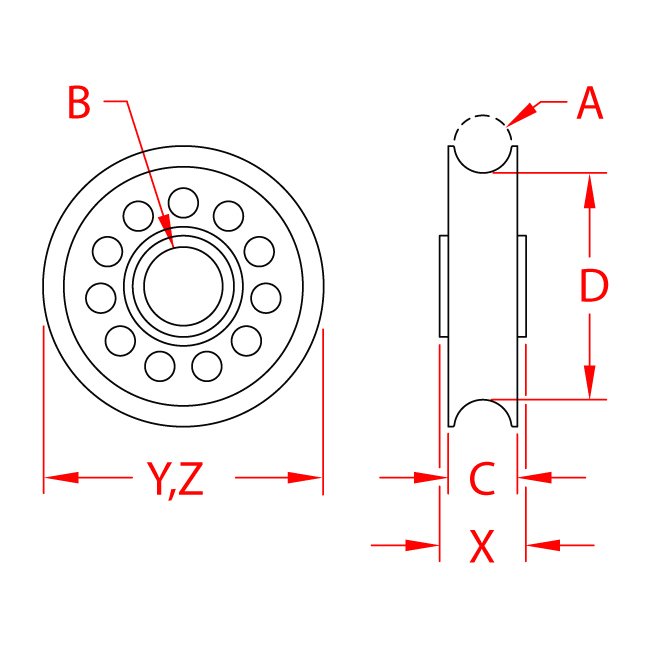

Specifications Bushing Material
Bronze
Specifications Dimension B
1.25 in
Specifications Dimension C
1.26 in
Specifications Dimension D
4.00 in
Specifications Dimension X
1.38 in
Specifications Dimension Y
5.00 in
Specifications Dimension Z
5.00 in
Specifications Material
316 Stainless Steel
Specifications Pulley Type
Rope
Specifications Rope Size A
1 in
Specifications Weight
2.59 (lb)
Specifications Working Load Limit Wll
5500 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
