PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade for Versatile Projects

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade for Versatile Projects

SKU:PUL-fe622a

Premium PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Versatile, Durable, and Safe for Various Projects.

Regular price $59.99
Regular price Sale price $59.99
Sale

Initiate Order

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade for Versatile Projects

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade for Versatile Projects

$59.99

Quantity: 1

Claim Your Seller Account

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade for Versatile Projects

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade for Versatile Projects

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

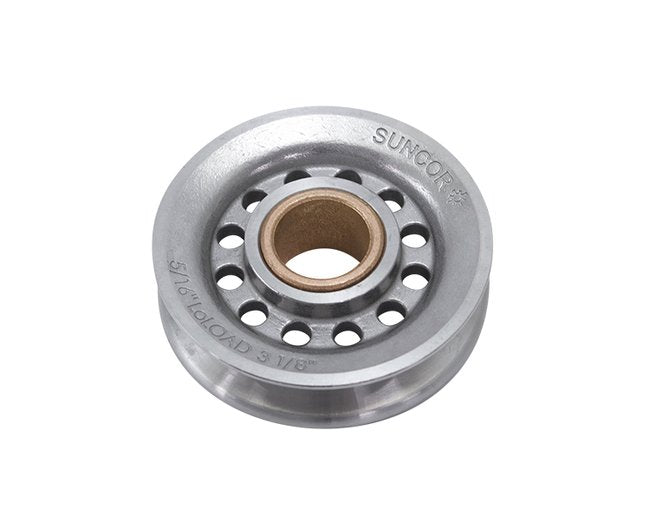

The PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing is designed to meet the demanding requirements of various projects. Crafted from high-grade 316 stainless steel for superior corrosion resistance, this premium sheave features a lead-free oil-impregnated bronze bushing capable of accommodating rope sizes from 3/8" to 1". Its robust design includes a thick-walled bushing to handle high loads and reduce friction, ensuring longevity and safety. With precise dimensions, optimal weight distribution, and versatile hub styles, the PullPro™ sheave offers exceptional durability and performance tailored to specific applications.

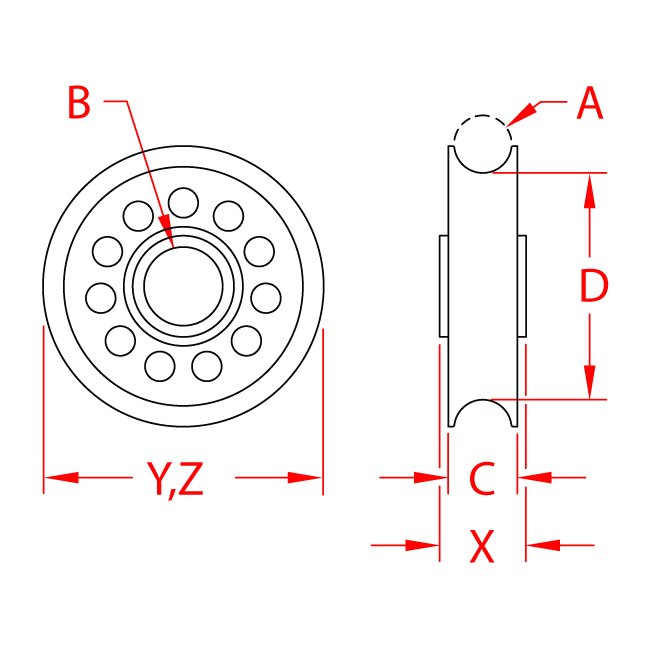

Product Specifications

Note
All dimensions are nominal (± 3%) and are subject to change without notice.Includes Spacer
Specifications Bushing Material
Bronze
Specifications Dimension B
0.75 in
Specifications Dimension C
0.92 in
Specifications Dimension D
3.02 in
Specifications Dimension X
1.02 in
Specifications Dimension Y
3.75 in
Specifications Dimension Z
3.75 in
Specifications Material
316 Stainless Steel
Specifications Pulley Type
Rope
Specifications Rope Size A
3/4 in
Specifications Spacer Part
S0429-202825
Specifications Weight
1.18 (lb)
Specifications Working Load Limit Wll
4500 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
