PullPro™ 316 Stainless Steel Rope Sheave Bearing

Name: PullPro™ 316 Stainless Steel Rope Sheave Bearing
Brand: Suncor Stainless, Inc.
SKU: PUL-77f8cf
Price: 49.99 USD
Availability: OutOfStock

SKU:PUL-77f8cf

Premium-grade PullPro™ 316 Stainless Steel Rope Sheave Bearing for durable, corrosion-resistant performance with precise fit from 3/8" to 1" ropes. Versatile and long-lasting design.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PullPro™ 316 Stainless Steel Rope Sheave Bearing is a premium-grade solution crafted from grade 316 stainless steel, designed for superior corrosion resistance and durability. Featuring a 440C hardened stainless steel ball bearing, this sheave supports rope sizes from 3/8" to 1", ensuring a precise fit for various applications. The full complement ball bearing race sustains high static loads, packed with water-resistant grease and a removable PTFE seal for ease of servicing. Versatile, robust, and long-lasting, PullPro™ sheaves offer optimal performance with a range of sizes and hub styles for tailored applications.

Product Specifications

Note

All dimensions are nominal (± 3%) and are subject to change without notice.

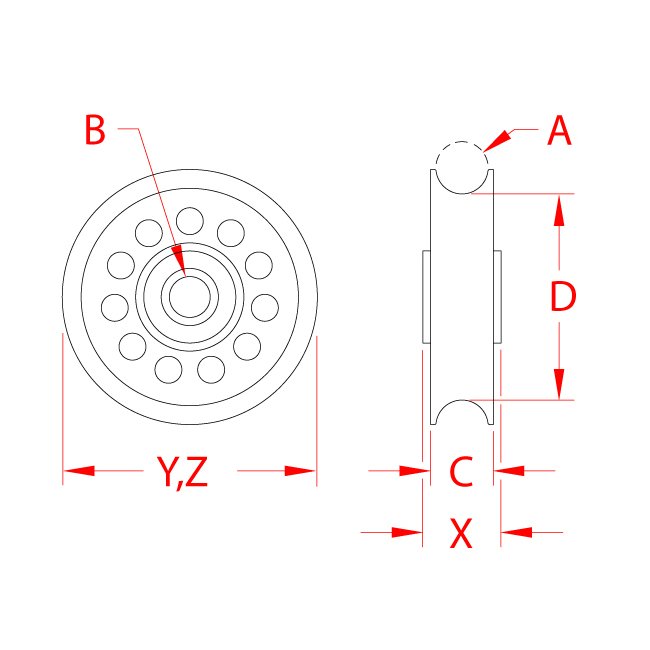

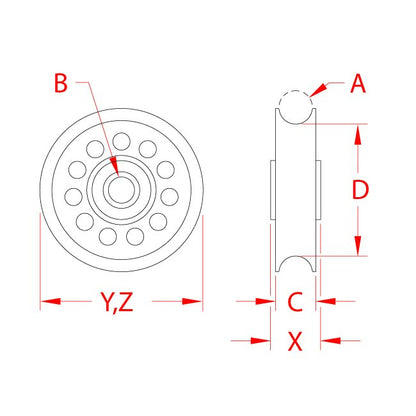

Specifications Dimension B

0.25 in

Specifications Dimension C

0.51 in

Specifications Dimension D

1.65 in

Specifications Dimension X

0.59 in

Specifications Dimension Y

2.00 in

Specifications Dimension Z

2.00 in

Specifications Material

316 Stainless Steel

Specifications Pulley Type

Rope

Specifications Rope Size A

3/8 to 7/16 in

Specifications Weight

0.26 (lb)

Specifications Working Load Limit Wll

1000 lb

CAGE

1CXX6

NAICS

332999

PSC

5340
