PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing

Name: PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing
Brand: Suncor Stainless, Inc.
SKU: PUL-984e2b
Price: 89.99 USD
Availability: OutOfStock

SKU:PUL-984e2b

Premium PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing for high-load, corrosion-resistant performance.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

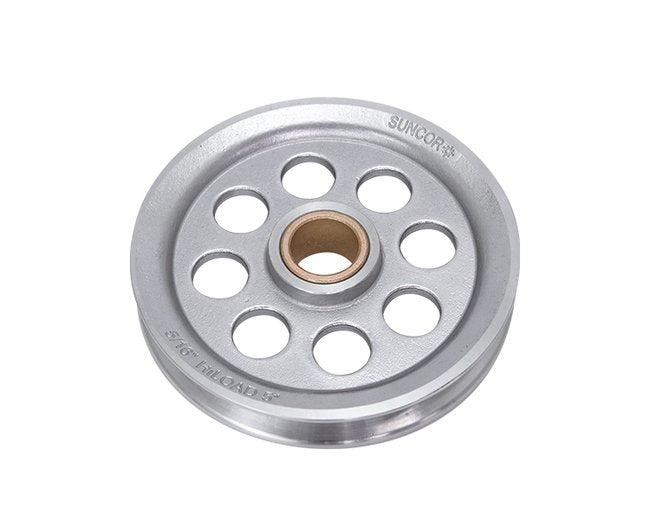

Upgrade your equipment with the PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing. Crafted from grade 316 stainless steel and lead-free oil-impregnated bronze bushing, this sheave ensures high-load performance, corrosion resistance, and durability. The thick-walled bushing supports side load wear, reduces friction, and is ideal for 180-degree wire rope turns. With a wide range of sizes and hub styles, choose this premium sheave for precision, safety, and lasting reliability in various applications.

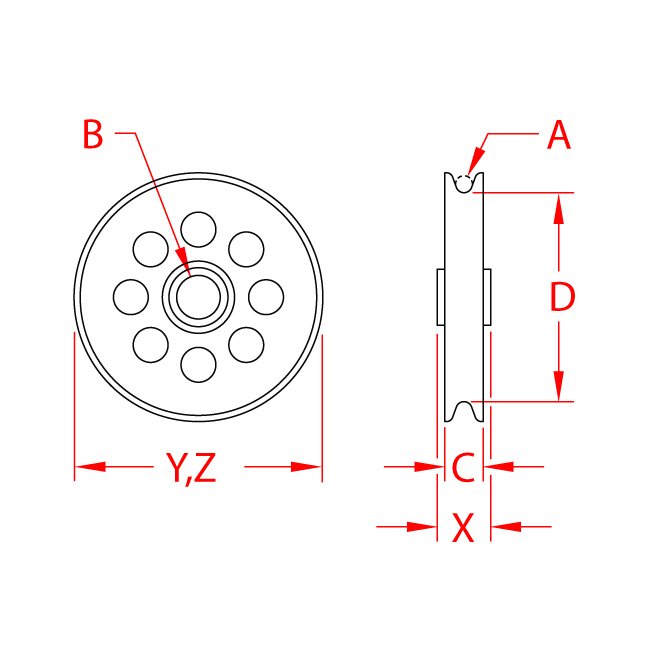

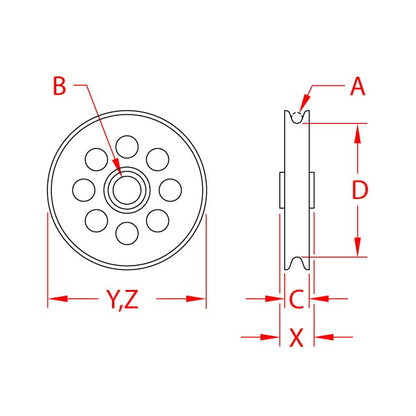

Product Specifications

Note

All dimensions are nominal (± 3%) and are subject to change without notice.

Specifications Bushing Material

Bronze

Specifications Dimension B

0.88 in

Specifications Dimension C

0.77 in

Specifications Dimension D

3.28 in

Specifications Dimension X

0.84 in

Specifications Dimension Y

4.00 in

Specifications Dimension Z

4.00 in

Specifications Material

316 Stainless Steel

Specifications Pulley Type

Wire Rope

Specifications Weight

0.95 (lb)

Specifications Wire Size A

1/4 in

Specifications Working Load Limit Wll

2000 lb

CAGE

1CXX6

NAICS

332999

PSC

5340
