PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing

Name: PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing
Brand: Suncor Stainless, Inc.
SKU: PUL-b70c47
Price: 89.99 USD
Availability: OutOfStock

SKU:PUL-b70c47

Premium PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing for high-load, corrosion-resistant applications. Ideal for 1/8" to 3/8" wire rope sizes.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

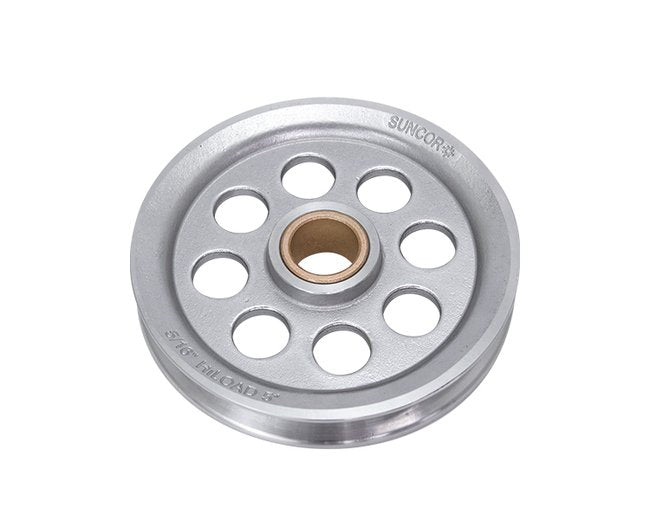

The PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing is a premium sheave designed for high load applications, ensuring perfect fits for wire rope sizes from 1/8" to 3/8". Crafted from grade 316 stainless steel for superior corrosion resistance and durability, the lead-free oil impregnated bronze bushing supports slow turning, high load operations with reduced friction. With added features like thick wall bushing for side load support and a design optimized for 180-degree wire rope turns, PullPro™ sheaves promise versatility, robustness, safety, and longevity.

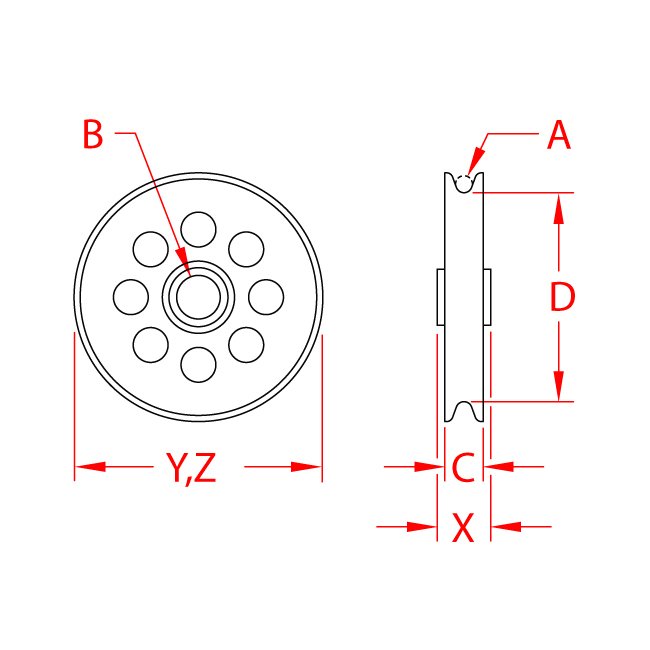

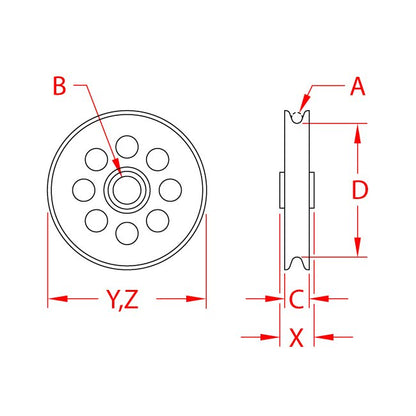

Product Specifications

Note

All dimensions are nominal (± 3%) and are subject to change without notice.Includes Spacer

Specifications Bushing Material

Bronze

Specifications Dimension B

0.63 in

Specifications Dimension C

0.92 in

Specifications Dimension D

5.00 in

Specifications Dimension X

1.02 in

Specifications Dimension Y

6.00 in

Specifications Dimension Z

6.00 in

Specifications Material

316 Stainless Steel

Specifications Pulley Type

Wire Rope

Specifications Spacer Part

S0429-162825

Specifications Weight

2.52 (lb)

Specifications Wire Size A

3/8 in

Specifications Working Load Limit Wll

4500 lb

CAGE

1CXX6

NAICS

332999

PSC

5340

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing
