PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing - 3/8 in

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing - 3/8 in

SKU:PUL-e407bb

Premium PullPro™ stainless steel sheave with bronze bushing for high-load projects in 3/8" wire sizes.

Regular price $89.99
Regular price Sale price $89.99
Sale

Initiate Order

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing - 3/8 in

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing - 3/8 in

$89.99

Quantity: 1

Claim Your Seller Account

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing - 3/8 in

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing - 3/8 in

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

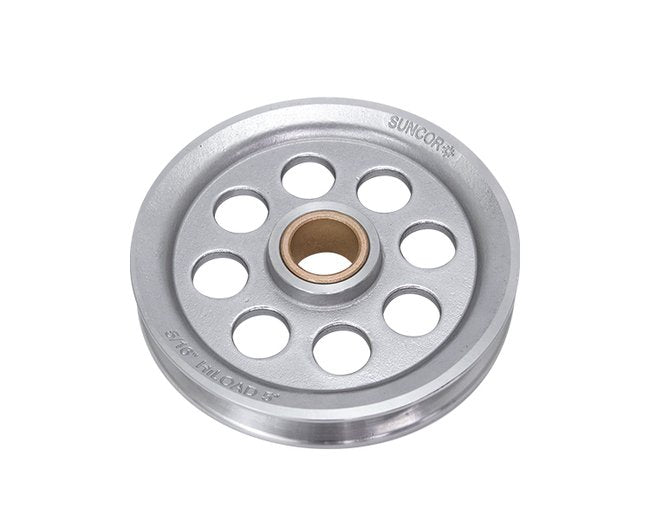

The PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing is a premium solution for high-load, slow-turning applications. Made from grade 316 stainless steel with a lead-free oil-impregnated bronze bushing, it ensures maximum corrosion resistance and durability. The thick-walled bushing supports side load wear, reduces friction, and fits rope sizes from 1/8" to 3/8". With a working load limit of 4500 lb and designed for 180-degree wire rope turns, this sheave is versatile, safe, and long-lasting. Tailor your project with this robust and reliable sheave for optimal performance.

Product Specifications

Note

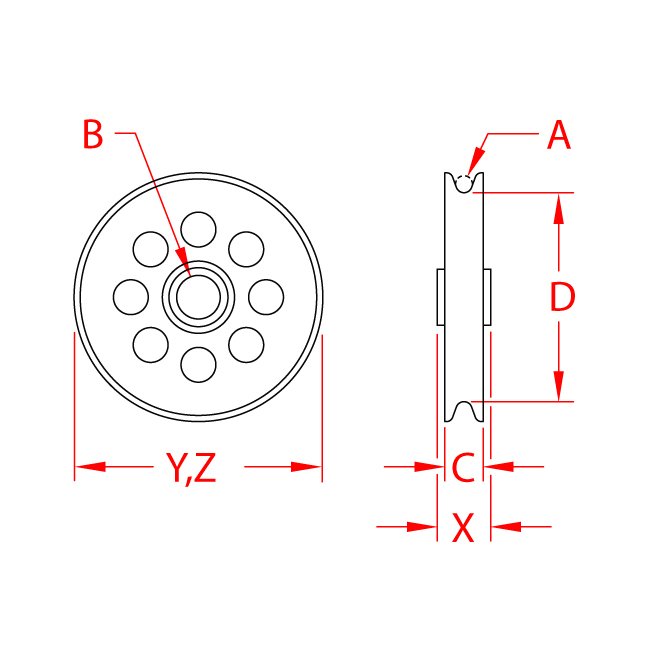

All dimensions are nominal (± 3%) and are subject to change without notice.Includes Spacer
Specifications Bushing Material
Bronze
Specifications Dimension B
0.88 in
Specifications Dimension C
0.92 in
Specifications Dimension D
5.00 in
Specifications Dimension X
1.02 in
Specifications Dimension Y
6.00 in
Specifications Dimension Z
6.00 in
Specifications Material
316 Stainless Steel
Specifications Pulley Type
Wire Rope
Specifications Spacer Part
S0429-222825
Specifications Weight
2.43 (lb)
Specifications Wire Size A
3/8 in
Specifications Working Load Limit Wll
4500 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
