PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing - 5/16 in

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing - 5/16 in

SKU:PUL-ff9a80

Premium 316 Stainless Steel/Bronze Wire Rope Sheave Bushing for high-load applications, fits 1/8"-3/8" ropes, 3000 lb WLL

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing - 5/16 in

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing - 5/16 in

$49.99

Quantity: 1

Claim Your Seller Account

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing - 5/16 in

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing - 5/16 in

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

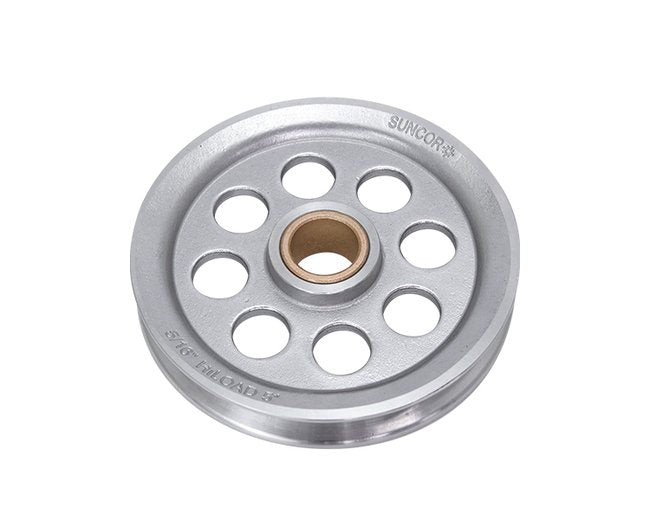

The PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing is crafted for high-load, slow-turning applications. Made from grade 316 stainless steel and lead-free oil-impregnated bronze, this sheave boasts maximum corrosion resistance, durability, and strength. Designed for wire rope sizes 1/8" to 3/8", it features a thick-walled bushing that supports side load wear reduction and minimizes friction. With a Working Load Limit of 3000 lb, this premium sheave ensures safety, longevity, and precise performance for various projects.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Ready to Grow Without Cash Flow Constraints?

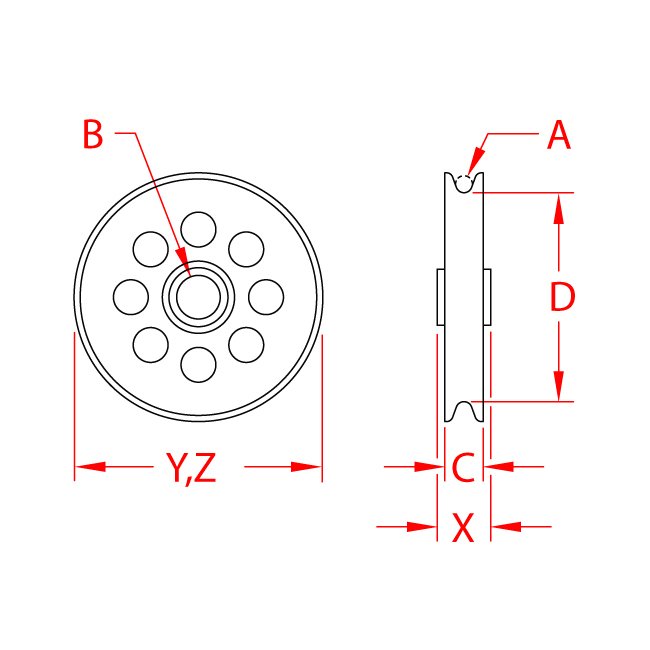

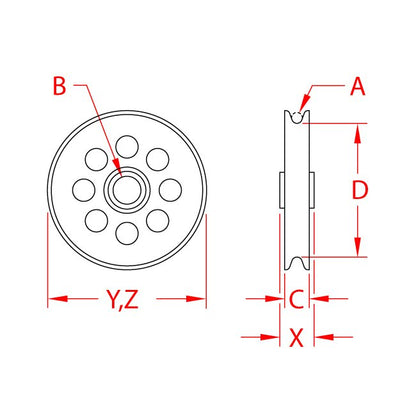

Product Specifications

Note
All dimensions are nominal (± 3%) and are subject to change without notice.Includes Spacer
Specifications Bushing Material
Bronze
Specifications Dimension B
0.75 in
Specifications Dimension C
0.77 in
Specifications Dimension D
4.20 in
Specifications Dimension X
0.86 in
Specifications Dimension Y
5.00 in
Specifications Dimension Z
5.00 in
Specifications Material
316 Stainless Steel
Specifications Pulley Type
Wire Rope
Specifications Spacer Part
S0429-202222
Specifications Weight
1.45 (lb)
Specifications Wire Size A
5/16 in
Specifications Working Load Limit Wll
3000 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
