PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing - 5/16 in

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing - 5/16 in

SKU:PUL-80d249

Premium 316 Stainless Steel/Bronze Sheave for heavy-duty, high load applications. Corrosion-resistant, durable, and versatile.

Regular price $89.99
Regular price Sale price $89.99
Sale

Initiate Order

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing - 5/16 in

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing - 5/16 in

$89.99

Quantity: 1

Claim Your Seller Account

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing - 5/16 in

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing - 5/16 in

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

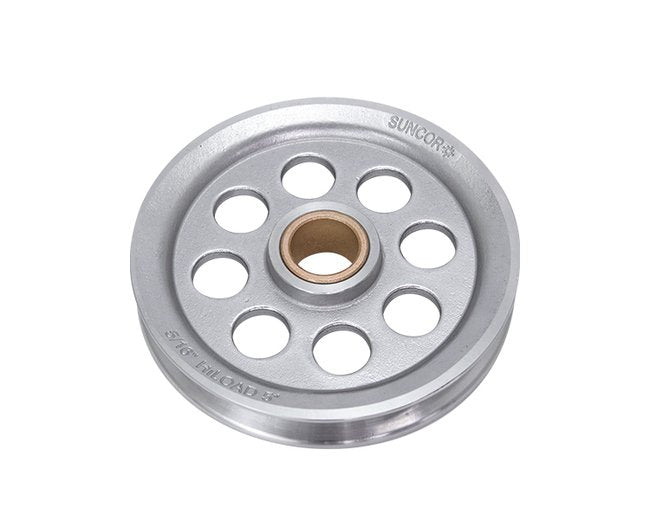

The PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing is a premium choice for heavy-duty applications. Crafted from grade 316 stainless steel for superior corrosion resistance and durability, this sheave features a lead-free oil-impregnated bronze bushing designed for high load, slow-turning scenarios. With a thick wall to support side load wear and reduce friction, this sheave is optimized for 180-degree wire rope turns with a high D/d ratio. Versatile, robust, and long-lasting, the PullPro™ sheave is available in various sizes and hub styles, allowing precise customization for optimal performance in specific applications.

Product Specifications

Note
All dimensions are nominal (± 3%) and are subject to change without notice.

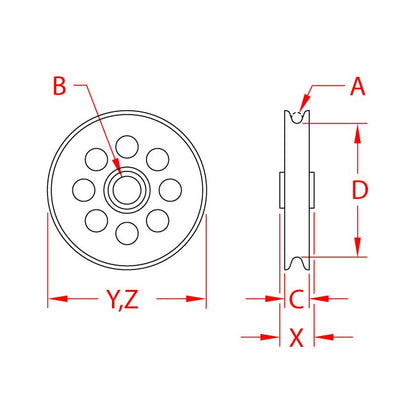

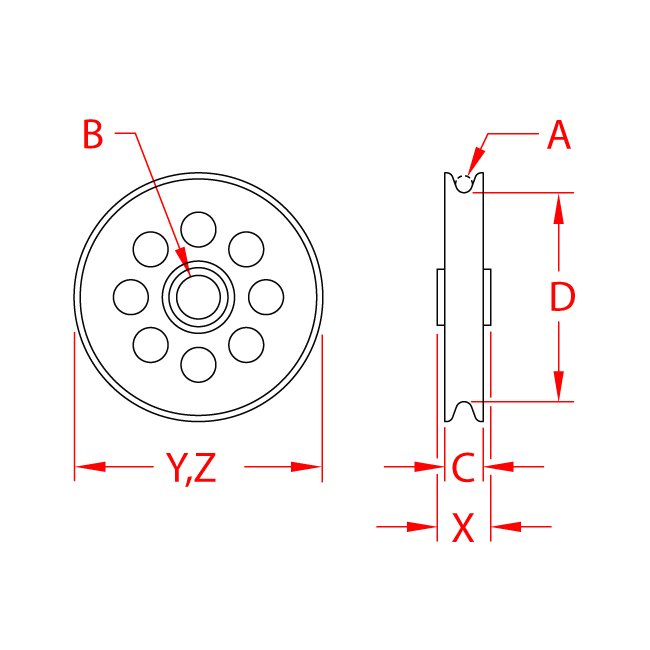

Specifications Bushing Material
Bronze
Specifications Dimension B
0.88 in
Specifications Dimension C
0.77 in
Specifications Dimension D
4.20 in
Specifications Dimension X
0.84 in
Specifications Dimension Y
5.00 in
Specifications Dimension Z
5.00 in
Specifications Material
316 Stainless Steel
Specifications Pulley Type
Wire Rope
Specifications Weight
1.41 (lb)
Specifications Wire Size A
5/16 in
Specifications Working Load Limit Wll
3000 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
