PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing for Heavy-Duty Applications

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing for Heavy-Duty Applications

SKU:PUL-fd1827

Premium PullPro™ HiLoad 316 Stainless Steel/Bronze Sheave Bushing for heavy-duty projects, offering superior durability and performance.

Regular price $69.99
Regular price Sale price $69.99
Sale

Initiate Order

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing for Heavy-Duty Applications

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing for Heavy-Duty Applications

$69.99

Quantity: 1

Claim Your Seller Account

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing for Heavy-Duty Applications

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing for Heavy-Duty Applications

$69.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

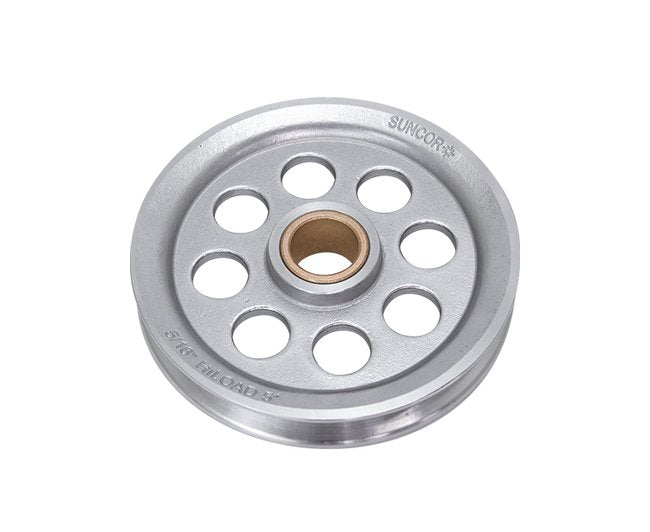

The PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing is a premium choice for heavy-duty projects. Made from grade 316 stainless steel and lead-free oil-impregnated bronze, this sheave offers maximum corrosion resistance and high load capacity. With a thick-walled bushing to support side load wear and reduce friction, it ensures durability and smooth operation. Ideal for 180-degree wire rope turns, this sheave meets stringent quality standards, providing versatility, safety, and longevity for various applications.

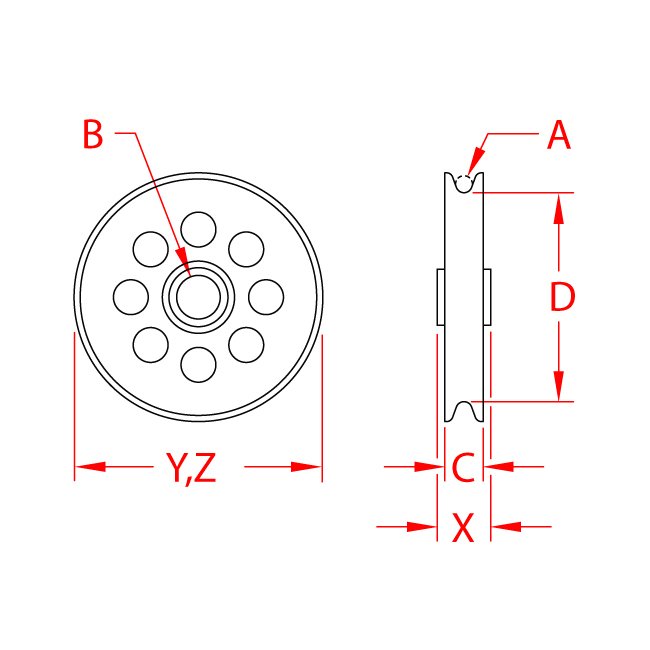

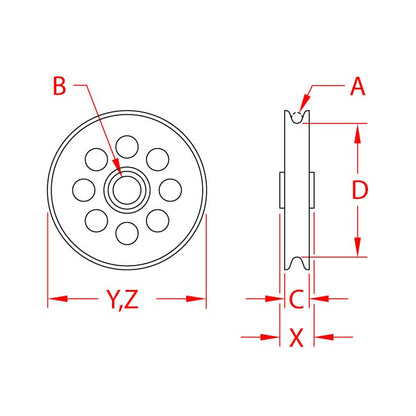

Product Specifications

Note
All dimensions are nominal (± 3%) and are subject to change without notice.Includes Spacer
Specifications Bushing Material
Bronze
Specifications Dimension B
0.38 in
Specifications Dimension C
0.63 in
Specifications Dimension D
2.42 in
Specifications Dimension X
0.71 in
Specifications Dimension Y
3.00 in
Specifications Dimension Z
3.00 in
Specifications Material
316 Stainless Steel
Specifications Pulley Type
Wire Rope
Specifications Spacer Part
S0429-101618
Specifications Weight
0.54 (lb)
Specifications Wire Size A
3/16 in
Specifications Working Load Limit Wll
1500 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
