PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing for Premium Performance

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing for Premium Performance

SKU:PUL-4c6a7a

Enhance rigging systems with the durable PullPro™ 316 Stainless Steel/Bronze Wire Rope Sheave Bushing for smooth, high-load operations.

Regular price $89.99
Regular price Sale price $89.99
Sale

Initiate Order

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing for Premium Performance

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing for Premium Performance

$89.99

Quantity: 1

Claim Your Seller Account

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing for Premium Performance

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing for Premium Performance

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

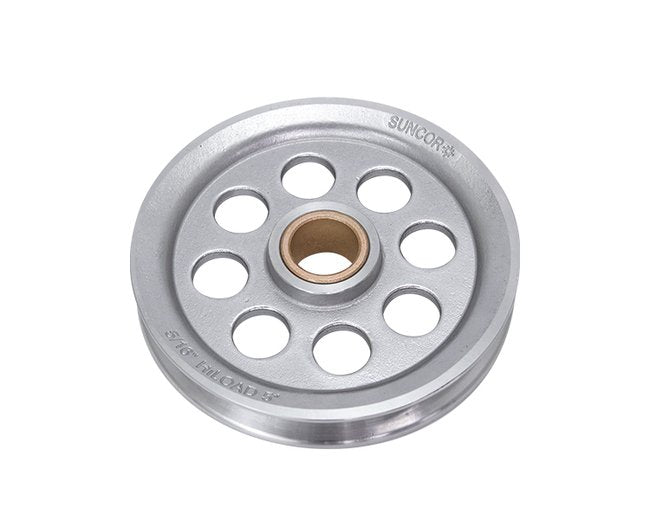

Upgrade your rigging system with the PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing, designed for high load, slow turning applications. Crafted from grade 316 stainless steel for superior corrosion resistance and durability, this sheave features a lead-free oil-impregnated bronze bushing with a thick wall for reduced friction and excellent side load support. With a high D/d ratio, this premium sheave is perfect for 180 degree wire rope turns, offering versatility, robustness, safety, and long-lasting performance. Choose from various sizes and hub styles for tailored application suitability.

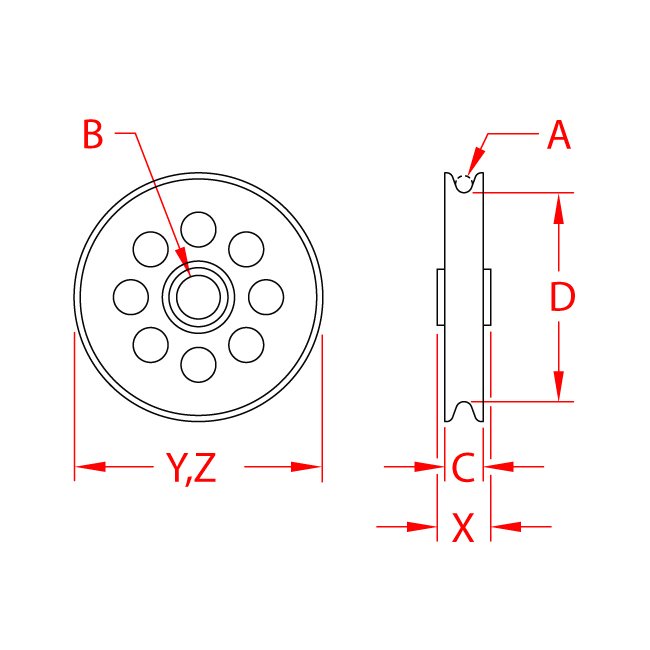

Product Specifications

Note
All dimensions are nominal (± 3%) and are subject to change without notice.Includes Spacer
Specifications Bushing Material
Bronze
Specifications Dimension B
0.50 in
Specifications Dimension C
0.77 in
Specifications Dimension D
3.28 in
Specifications Dimension X
0.86 in
Specifications Dimension Y
4.00 in
Specifications Dimension Z
4.00 in
Specifications Material
316 Stainless Steel
Specifications Pulley Type
Wire Rope
Specifications Spacer Part
S0429-132222
Specifications Weight
1.05 (lb)
Specifications Wire Size A
1/4 in
Specifications Working Load Limit Wll
2000 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
