PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing - Heavy Duty Performance

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing - Heavy Duty Performance

SKU:PUL-1bba2c

Premium PullPro™ HiLoad Stainless/Bronze Wire Rope Sheave Bushing - Corrosion Resistant, Heavy Duty Performance

Regular price $89.99
Regular price Sale price $89.99
Sale

Initiate Order

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing - Heavy Duty Performance

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing - Heavy Duty Performance

$89.99

Quantity: 1

Claim Your Seller Account

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing - Heavy Duty Performance

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing - Heavy Duty Performance

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

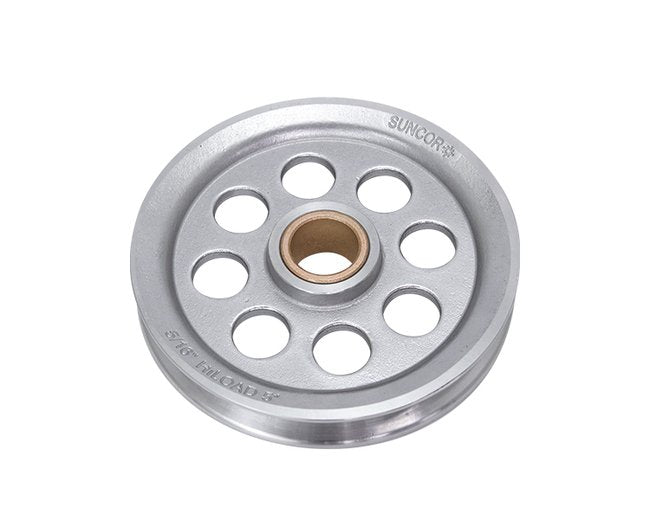

The PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing is engineered for heavy-duty applications, boasting a bronze bushing that accommodates wire sizes from 1/8" to 3/8" with precision. Crafted from grade 316 stainless steel for superior corrosion resistance and endurance, this sheave offers exceptional load-bearing capacity. The lead-free oil-impregnated bronze bushing is tailored for high-load, low-speed operations, featuring a thick wall structure to combat side load wear and minimize friction. With a HiLoad designation indicating a premium design for 180-degree wire rope turns, this PullPro™ sheave is a reliable choice for dependable, long-lasting performance in diverse industrial settings.

Product Specifications

Note
All dimensions are nominal (± 3%) and are subject to change without notice.Includes Spacer

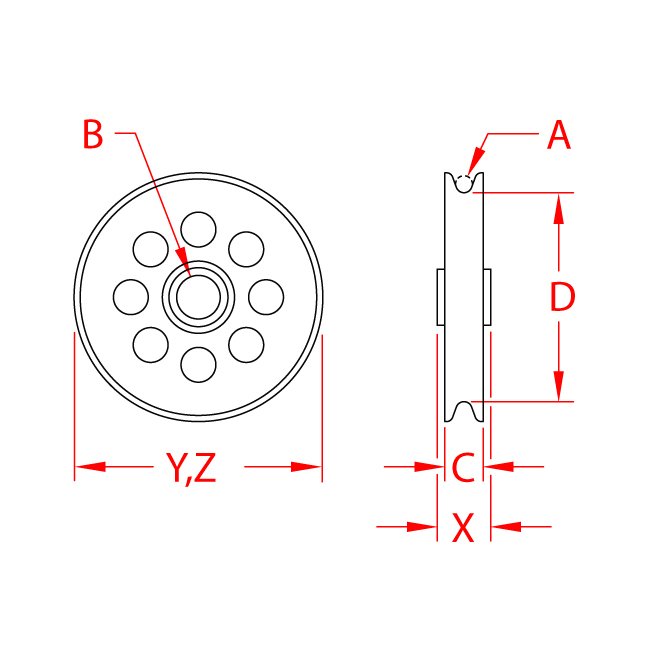

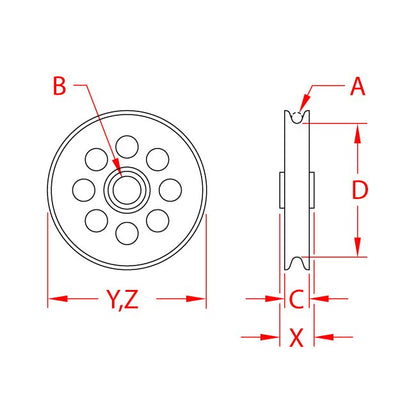

Specifications Bushing Material
Bronze
Specifications Dimension B
0.75 in
Specifications Dimension C
0.92 in
Specifications Dimension D
5.00 in
Specifications Dimension X
1.02 in
Specifications Dimension Y
6.00 in
Specifications Dimension Z
6.00 in
Specifications Material
316 Stainless Steel
Specifications Pulley Type
Wire Rope
Specifications Spacer Part
S0429-202825
Specifications Weight
2.48 (lb)
Specifications Wire Size A
3/8 in
Specifications Working Load Limit Wll
4500 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
