PullPro™ HiLoad 316 Stainless Steel Wire Rope Sheave Bearing

Name: PullPro™ HiLoad 316 Stainless Steel Wire Rope Sheave Bearing
Brand: Suncor Stainless, Inc.
SKU: PUL-d55a04
Price: 49.99 USD
Availability: OutOfStock

SKU:PUL-d55a04

Premium-grade PullPro™ HiLoad 316 Stainless Steel Wire Rope Sheave Bearing for high static loads & corrosion resistance.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

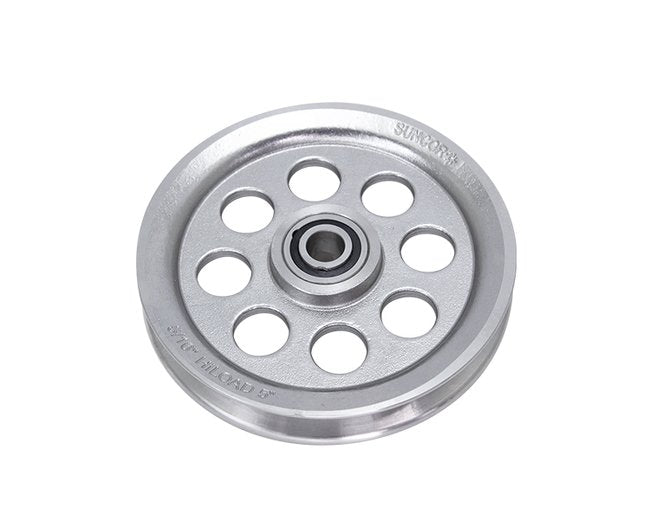

The PullPro™ HiLoad 316 Stainless Steel Wire Rope Sheave Bearing is a premium-grade sheave featuring a 440C hardened stainless steel ball bearing race, suitable for wire sizes from 1/8" to 3/8". Crafted from high-grade 316 stainless steel, it offers exceptional corrosion resistance and durability. Designed for high static loads with a removable PTFE seal, this sheave ensures smooth operation and easy maintenance. Ideal for 180-degree wire rope turns, the PullPro™ sheave guarantees safety, longevity, and performance in diverse applications.

Product Specifications

Note

All dimensions are nominal (± 3%) and are subject to change without notice.

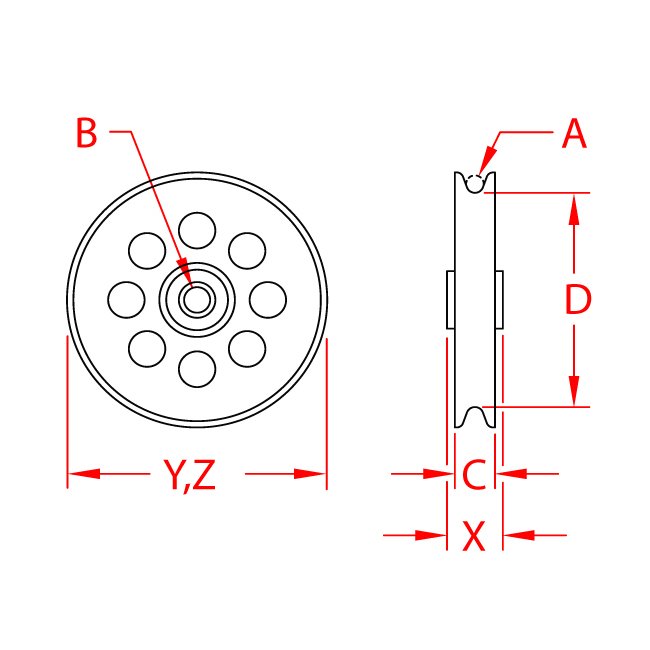

Specifications Dimension B

0.50 in

Specifications Dimension C

0.77 in

Specifications Dimension D

3.28 in

Specifications Dimension X

0.86 in

Specifications Dimension Y

4.00 in

Specifications Dimension Z

4.00 in

Specifications Material

316 Stainless Steel

Specifications Pulley Type

Wire Rope

Specifications Weight

1.00 (lb)

Specifications Wire Size A

1/4 in

Specifications Working Load Limit Wll

2000 lb

CAGE

1CXX6

NAICS

332999

PSC

5340

PullPro™ HiLoad 316 Stainless Steel Wire Rope Sheave Bearing
