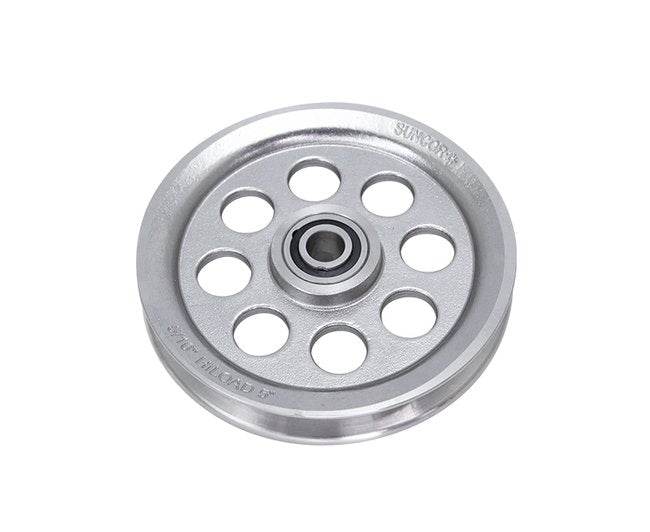

PullPro™ HiLoad 316 Stainless Steel Wire Rope Sheave Bearing - Premium Grade

PullPro™ HiLoad 316 Stainless Steel Wire Rope Sheave Bearing - Premium Grade

SKU:PUL-c61c51

High-load 316 stainless steel wire rope sheave with ball bearing race. Durable, versatile, and corrosion-resistant for safe and reliable operations.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

PullPro™ HiLoad 316 Stainless Steel Wire Rope Sheave Bearing - Premium Grade

PullPro™ HiLoad 316 Stainless Steel Wire Rope Sheave Bearing - Premium Grade

$49.99

Quantity: 1

Claim Your Seller Account

PullPro™ HiLoad 316 Stainless Steel Wire Rope Sheave Bearing - Premium Grade

PullPro™ HiLoad 316 Stainless Steel Wire Rope Sheave Bearing - Premium Grade

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PullPro™ HiLoad 316 Stainless Steel Wire Rope Sheave Bearing is engineered for exceptional durability and performance. Crafted from grade 316 stainless steel, this premium shear features a 440C hardened stainless steel ball bearing race to support high static loads and ensure smooth operation. With a wide compatibility range of rope sizes from 1/8" to 3/8", a high D/d ratio, and a full complement ball bearing race, this sheave delivers superior efficiency and safety. Designed with a removable PTFE seal and water-resistant grease, it prevents the ingress of foreign objects and fluids, making it suitable for diverse applications. PullPro™ premium stainless steel sheaves offer longevity, versatility, and reliability, making them ideal for demanding projects.

Product Specifications

Note
All dimensions are nominal (± 3%) and are subject to change without notice.

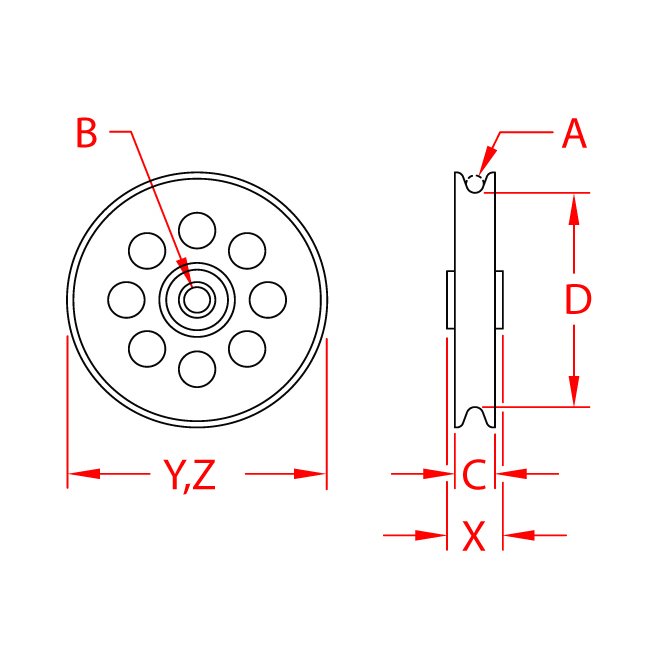

Specifications Dimension B
0.38 in
Specifications Dimension C
0.63 in
Specifications Dimension D
2.42 in
Specifications Dimension X
0.71 in
Specifications Dimension Y
3.00 in
Specifications Dimension Z
3.00 in
Specifications Material
316 Stainless Steel
Specifications Pulley Type
Wire Rope
Specifications Weight
0.50 (lb)
Specifications Wire Size A
3/16 in
Specifications Working Load Limit Wll
1500 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
