PullPro™ HiLoad 316 Stainless Steel Wire Rope Sheave Bearing - Premium Grade

PullPro™ HiLoad 316 Stainless Steel Wire Rope Sheave Bearing - Premium Grade

SKU:PUL-8c76c8

Premium-grade PullPro™ HiLoad 316 Stainless Steel Wire Rope Sheave Bearing for high static loads and maximum corrosion resistance.

Regular price $59.99
Regular price Sale price $59.99
Sale

Initiate Order

PullPro™ HiLoad 316 Stainless Steel Wire Rope Sheave Bearing - Premium Grade

PullPro™ HiLoad 316 Stainless Steel Wire Rope Sheave Bearing - Premium Grade

$59.99

Quantity: 1

Claim Your Seller Account

PullPro™ HiLoad 316 Stainless Steel Wire Rope Sheave Bearing - Premium Grade

PullPro™ HiLoad 316 Stainless Steel Wire Rope Sheave Bearing - Premium Grade

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

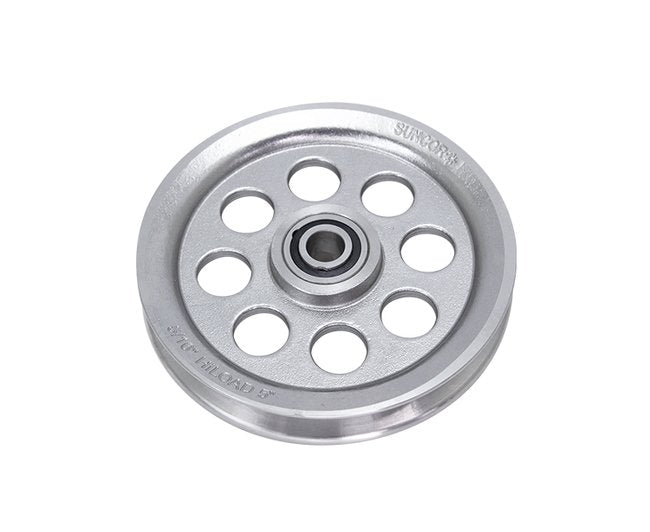

The PullPro™ HiLoad 316 Stainless Steel Wire Rope Sheave Bearing is a premium-grade solution designed for high static loads. Made from grade 316 stainless steel, it ensures maximum corrosion resistance and durability. Featuring a 440C hardened stainless steel ball bearing race, this sheave is suitable for wire sizes ranging from 1/8" to 3/8". The full complement ball bearing race is packed with water-resistant grease and comes with a removable PTFE seal for easy servicing and protection against foreign objects and fluids. Tailored for 180-degree wire rope turns with a high D/d ratio, this sheave is versatile, robust, safe, and long-lasting, making it ideal for a wide range of applications.

Product Specifications

Note
All dimensions are nominal (± 3%) and are subject to change without notice.

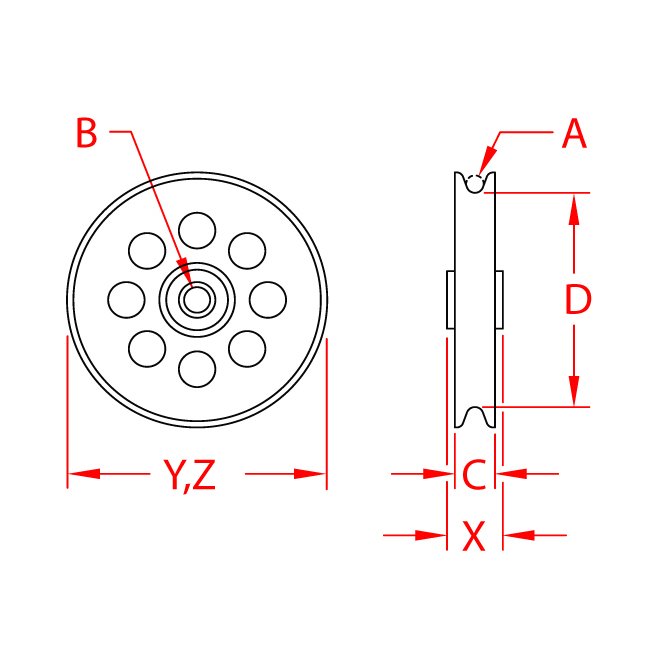

Specifications Dimension B
0.50 in
Specifications Dimension C
0.77 in
Specifications Dimension D
4.20 in
Specifications Dimension X
0.86 in
Specifications Dimension Y
5.00 in
Specifications Dimension Z
5.00 in
Specifications Material
316 Stainless Steel
Specifications Pulley Type
Wire Rope
Specifications Weight
1.45 (lb)
Specifications Wire Size A
5/16 in
Specifications Working Load Limit Wll
3000 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
