PullPro™ HiLoad 316 Stainless Steel Wire Rope Sheave Bearing - Premium Grade

Name: PullPro™ HiLoad 316 Stainless Steel Wire Rope Sheave Bearing - Premium Grade
Brand: Suncor Stainless, Inc.
SKU: PUL-5f8e78
Price: 89.99 USD
Availability: OutOfStock

SKU:PUL-5f8e78

Premium PullPro™ HiLoad 316 Stainless Steel Wire Rope Sheave Bearing for high static loads and corrosion resistance.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

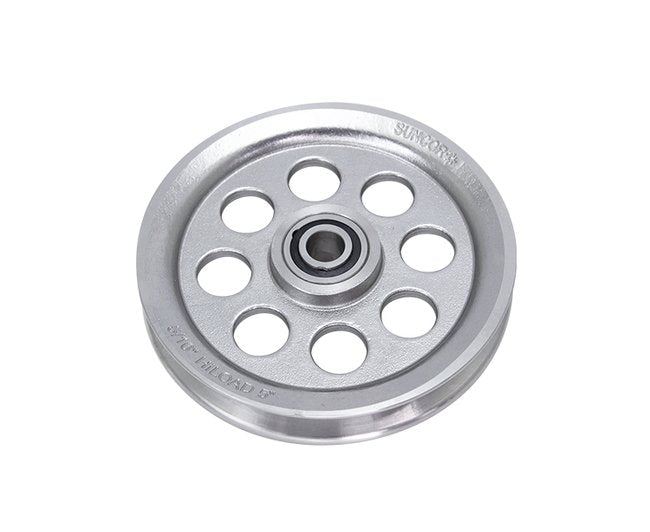

The PullPro™ HiLoad 316 Stainless Steel Wire Rope Sheave Bearing is engineered for high static loads with a grade 316 stainless steel construction for superior corrosion resistance. Featuring a 440C hardened stainless steel ball bearing race, this sheave ensures smooth operation and durability. The HiLoad design accommodates 180-degree wire rope turns with a high D/d ratio, offering versatility and safety. With a removable PTFE seal for easy servicing and water-resistant grease, this premium sheave is ideal for long-lasting use in demanding applications.

Product Specifications

Note

All dimensions are nominal (± 3%) and are subject to change without notice.

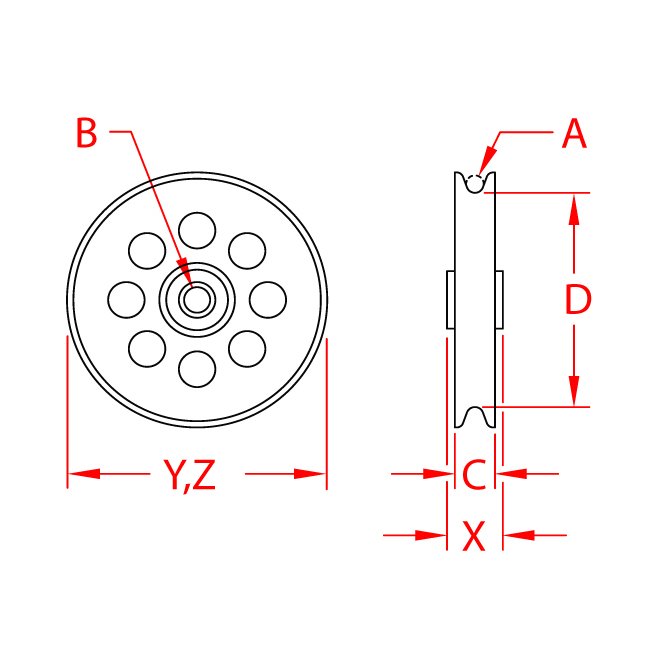

Specifications Dimension B

0.63 in

Specifications Dimension C

0.92 in

Specifications Dimension D

5.00 in

Specifications Dimension X

1.02 in

Specifications Dimension Y

6.00 in

Specifications Dimension Z

6.00 in

Specifications Material

316 Stainless Steel

Specifications Pulley Type

Wire Rope

Specifications Weight

2.55 (lb)

Specifications Wire Size A

3/8 in

Specifications Working Load Limit Wll

4500 lb

CAGE

1CXX6

NAICS

332999

PSC

5340
