PullPro™ HiLoad Stainless Steel/Bronze Wire Rope Sheave Bushing

Name: PullPro™ HiLoad Stainless Steel/Bronze Wire Rope Sheave Bushing
Brand: Suncor Stainless, Inc.
SKU: PUL-f07724
Price: 89.99 USD
Availability: OutOfStock

SKU:PUL-f07724

Premium PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing for high-load projects. Versatile, durable, and corrosion-resistant.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

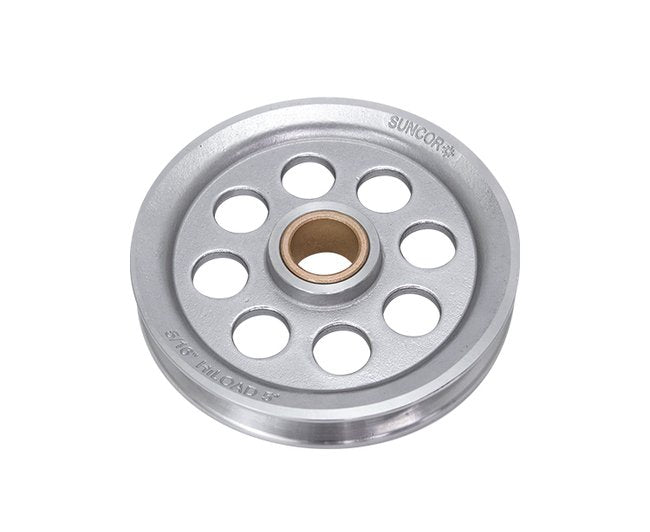

The PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing is engineered for high-load, slow-turning applications. Made from grade 316 stainless steel and lead-free oil-impregnated bronze, this sheave ensures exceptional durability and corrosion resistance. Its thick-walled bronze bushing supports heavy loads, minimizes friction, and accommodates wire rope sizes ranging from 1/8" to 3/8". With a focus on safety and longevity, this premium sheave is designed for optimal performance and tailored to specific project applications.

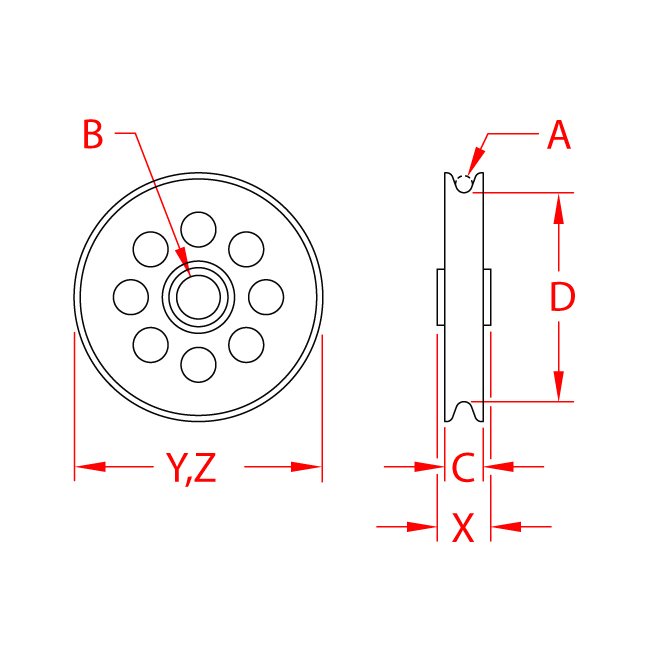

Product Specifications

Note

All dimensions are nominal (± 3%) and are subject to change without notice.Includes Spacer

Specifications Bushing Material

Bronze

Specifications Dimension B

0.25 in

Specifications Dimension C

0.39 in

Specifications Dimension D

1.64 in

Specifications Dimension X

0.46 in

Specifications Dimension Y

2.00 in

Specifications Dimension Z

2.00 in

Specifications Material

316 Stainless Steel

Specifications Pulley Type

Wire Rope

Specifications Spacer Part

S0429-071012

Specifications Weight

0.14 (lb)

Specifications Wire Size A

1/8 in

Specifications Working Load Limit Wll

500 lb

CAGE

1CXX6

NAICS

332999

PSC

5340

PullPro™ HiLoad Stainless Steel/Bronze Wire Rope Sheave Bushing
