PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing

Name: PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing
Brand: Suncor Stainless, Inc.
SKU: PUL-d8d059
Price: 49.99 USD
Availability: OutOfStock

SKU:PUL-d8d059

Premium PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing for small deflection turns under 90 degrees.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

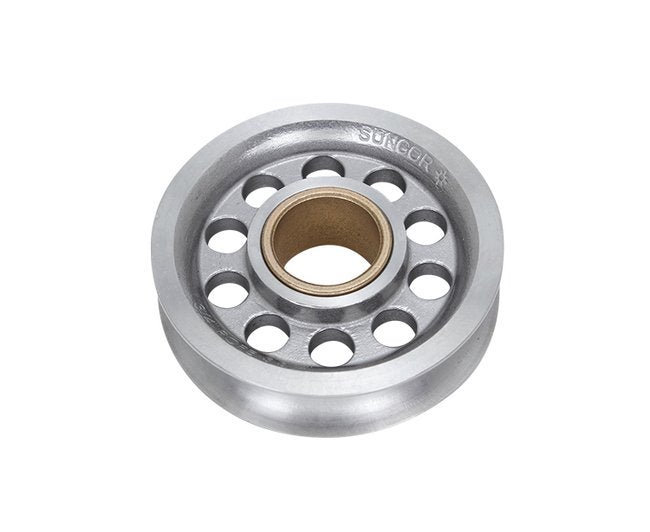

The PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing is a high-quality pulley designed for small deflection turns under 90 degrees. Made from grade 316 stainless steel for superior corrosion resistance and durability, the bushing features oil impregnated bronze for high load capacity. Its thick-walled construction reduces friction and supports side load wear. With dimensions tailored to fit wire sizes from 3/16" to 3/8", this sheave ensures a precise fit for various projects. Versatile, robust, and safe, this PullPro™ premium stainless steel sheave is a long-lasting solution for your pulley needs.

Product Specifications

Note

All dimensions are nominal (± 3%) and are subject to change without notice.

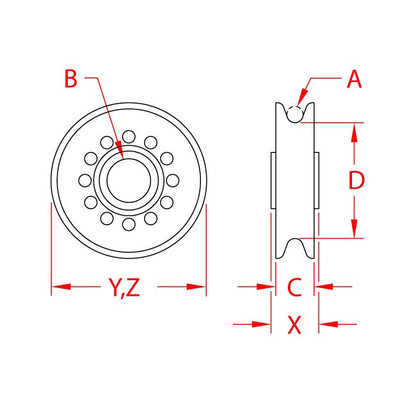

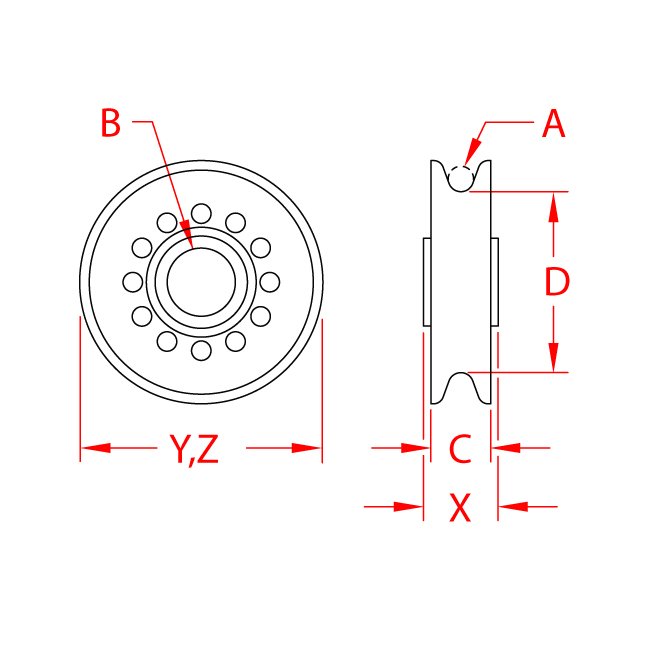

Specifications Bushing Material

Bronze

Specifications Dimension B

0.38 in

Specifications Dimension C

0.51 in

Specifications Dimension D

1.50 in

Specifications Dimension X

0.56 in

Specifications Dimension Y

2.00 in

Specifications Dimension Z

2.00 in

Specifications Material

316 Stainless Steel

Specifications Pulley Type

Wire

Specifications Weight

0.20 (lb)

Specifications Wire Size A

3/16 in

Specifications Working Load Limit Wll

1000 lb

CAGE

1CXX6

NAICS

332999

PSC

5340
