PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing

PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing

SKU:PUL-7e9c32

Premium PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing, durable grade 316 stainless steel construction, high load capacity with lead-free bronze bushing, versatile and long-lasting design.

Regular price $39.99
Regular price Sale price $39.99
Sale

Initiate Order

PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing

PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing

$39.99

Quantity: 1

Claim Your Seller Account

PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing

PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

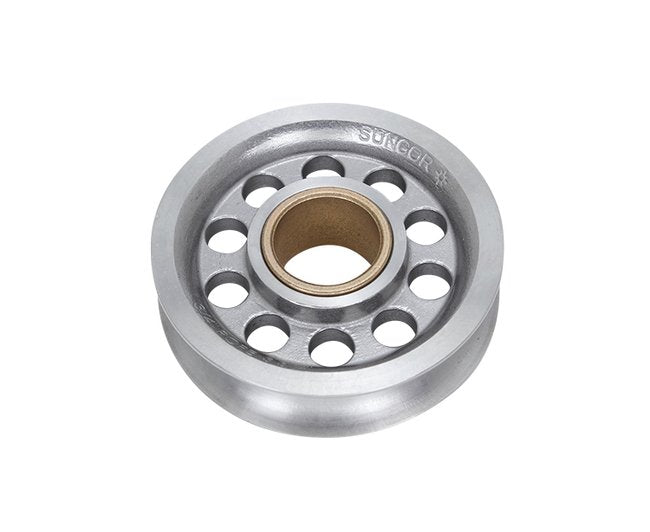

The PullPro™ LoLoad Wire Rope Sheave Bushing is expertly crafted from grade 316 stainless steel with a lead-free oil-impregnated bronze bushing to ensure high load capacity and durability. Suitable for wire sizes ranging from 3/16" to 3/8", this sheave is designed for small deflection turns under 90 degrees, featuring a thick-walled design to support side load wear and reduce friction. With a working load limit of 1500 lb, this premium stainless steel sheave guarantees versatility, safety, and long-lasting performance. Each sheave is carefully engineered to provide optimal weight distribution, groove diameter, and throat angle, making it ideal for a wide range of applications.

Product Specifications

Note
All dimensions are nominal (± 3%) and are subject to change without notice.Includes Spacer

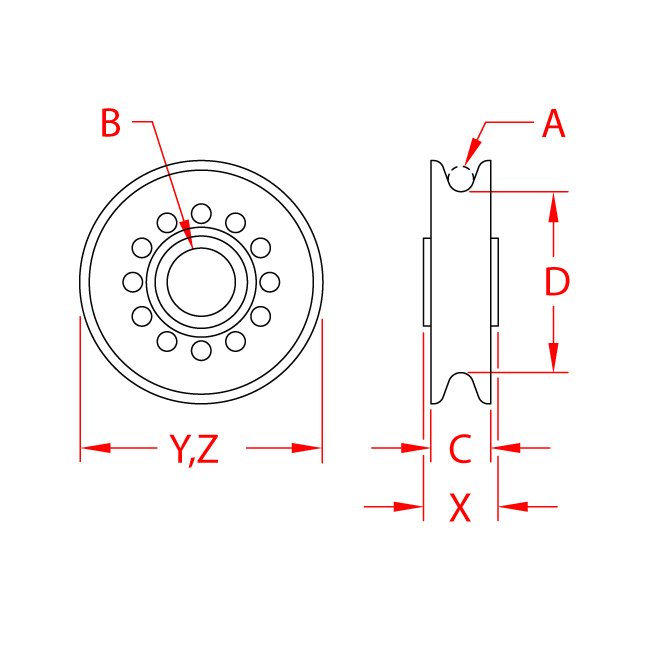

Specifications Bushing Material
Bronze
Specifications Dimension B
0.50 in
Specifications Dimension C
0.63 in
Specifications Dimension D
1.90 in
Specifications Dimension X
0.71 in
Specifications Dimension Y
2.50 in
Specifications Dimension Z
2.50 in
Specifications Material
316 Stainless Steel
Specifications Pulley Type
Wire
Specifications Spacer Part
S0429-131618
Specifications Weight
0.48 (lb)
Specifications Wire Size A
1/4 in
Specifications Working Load Limit Wll
1500 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
