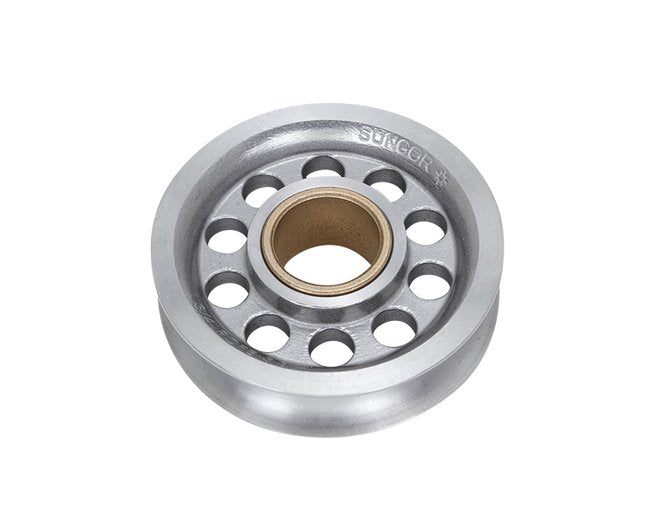

PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing

Name: PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing
Brand: Suncor Stainless, Inc.
SKU: PUL-e9f52c
Price: 39.99 USD
Availability: OutOfStock

SKU:PUL-e9f52c

Premium PullPro™ LoLoad Sheave for durable and precise wire rope applications.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing is a premium choice for wire rope applications. Constructed from grade 316 stainless steel and lead-free oil-impregnated bronze, it offers exceptional durability, corrosion resistance, and high load capacity. Designed for small deflection turns under 90 degrees, it features a thick-walled bushing to minimize friction and support side loads. With precise dimensions and a working load limit of 2000 lb, this sheave ensures a perfect fit and optimal performance for a wide range of projects.

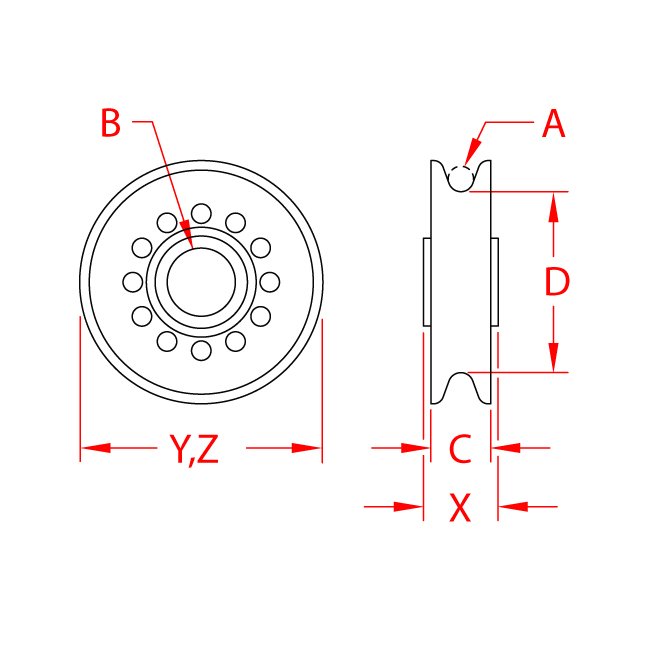

Product Specifications

Note

All dimensions are nominal (± 3%) and are subject to change without notice.Includes Spacer

Specifications Bushing Material

Bronze

Specifications Dimension B

0.63 in

Specifications Dimension C

0.77 in

Specifications Dimension D

2.33 in

Specifications Dimension X

0.86 in

Specifications Dimension Y

3.13 in

Specifications Dimension Z

3.13 in

Specifications Material

316 Stainless Steel

Specifications Pulley Type

Wire

Specifications Spacer Part

S0429-162222

Specifications Weight

0.80 (lb)

Specifications Wire Size A

5/16 in

Specifications Working Load Limit Wll

2000 lb

CAGE

1CXX6

NAICS

332999

PSC

5340

PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing
