PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing for Small Deflection Turns

PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing for Small Deflection Turns

SKU:PUL-3c0d07

Premium grade PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing for small deflection turns. Maximum durability and corrosion resistance.

Regular price $39.99
Regular price Sale price $39.99
Sale

Initiate Order

PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing for Small Deflection Turns

PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing for Small Deflection Turns

$39.99

Quantity: 1

Claim Your Seller Account

PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing for Small Deflection Turns

PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing for Small Deflection Turns

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

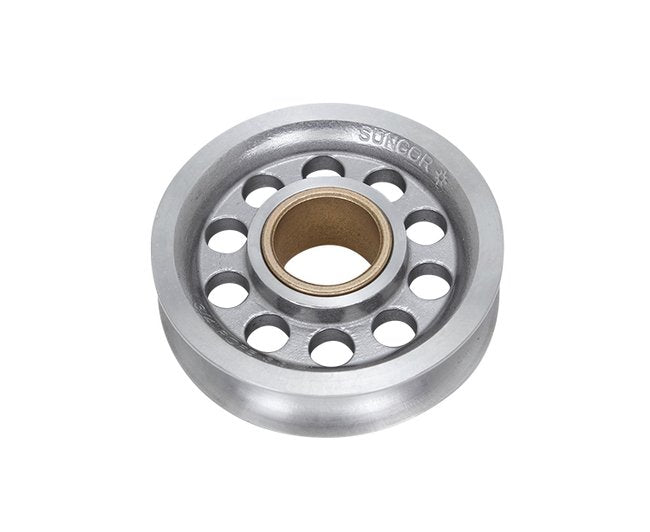

The PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing is specifically designed for small deflection turns of less than 90 degrees, making it ideal for high load, slow-turning applications. Made from grade 316 stainless steel and lead-free oil-impregnated bronze bushing, this sheave guarantees maximum corrosion resistance, durability, and reduced friction. With a thick-walled bushing that supports side load wear, this sheave ensures long-lasting performance that meets the most stringent project requirements. It offers a versatile, robust, and safe solution tailored to various product applications.

Product Specifications

Note
All dimensions are nominal (± 3%) and are subject to change without notice.Includes Spacer
Specifications Bushing Material
Bronze

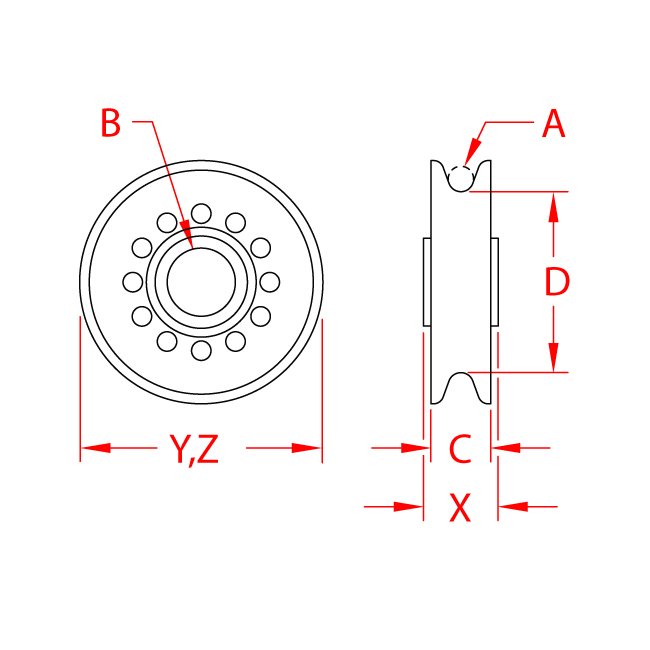

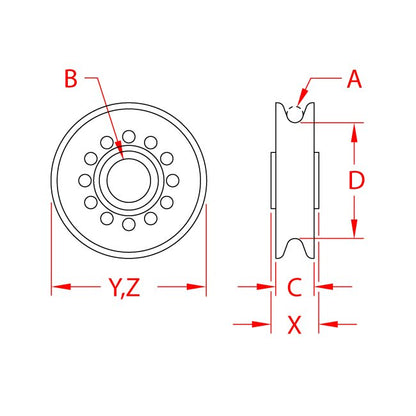

Specifications Dimension B
0.75 in
Specifications Dimension C
0.77 in
Specifications Dimension D
3.04 in
Specifications Dimension X
0.86 in
Specifications Dimension Y
4.00 in
Specifications Dimension Z
4.00 in
Specifications Material
316 Stainless Steel
Specifications Pulley Type
Wire
Specifications Spacer Part
S0429-202222
Specifications Weight
1.19 (lb)
Specifications Wire Size A
3/8 in
Specifications Working Load Limit Wll
3000 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
