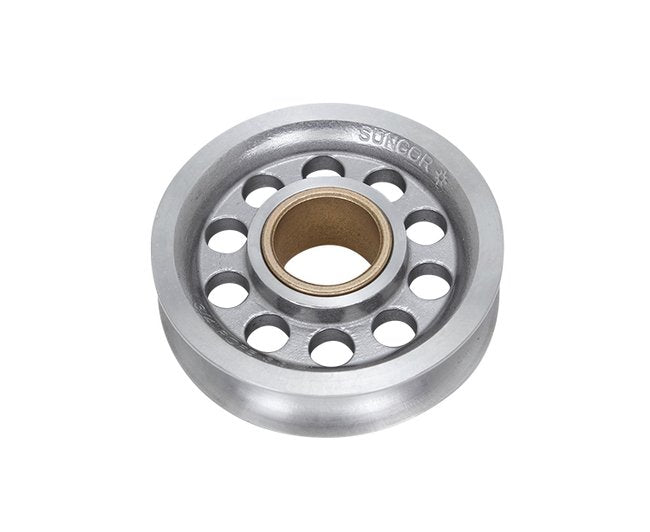

PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing - Small Diameter

PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing - Small Diameter

SKU:PUL-cad874

Premium-grade PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing for high-load applications. Corrosion-resistant and durable.

Regular price $89.99
Regular price Sale price $89.99
Sale

Initiate Order

PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing - Small Diameter

PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing - Small Diameter

$89.99

Quantity: 1

Claim Your Seller Account

PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing - Small Diameter

PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing - Small Diameter

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing is a premium-grade sheave designed for high-load, slow-turning applications. Made from grade 316 stainless steel for maximum corrosion resistance and durability, with a lead-free oil impregnated bronze bushing. The thick-walled bushing supports side load wear and reduces friction, ensuring optimal performance in small deflection turns. With a working load limit of 3000 lb, it accommodates wire sizes from 3/16" to 3/8". Versatile, robust, and safe, this sheave is tailored for specific product applications, offering longevity and efficiency.

Product Specifications

Note
All dimensions are nominal (± 3%) and are subject to change without notice.Includes Spacer

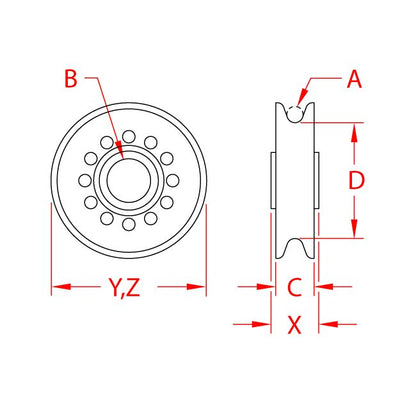

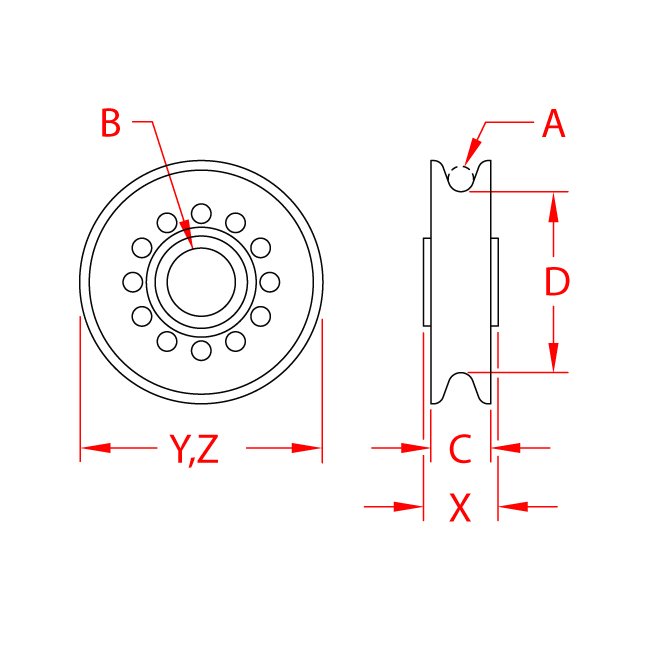

Specifications Bushing Material
Bronze
Specifications Dimension B
0.50 in
Specifications Dimension C
0.77 in
Specifications Dimension D
3.04 in
Specifications Dimension X
0.86 in
Specifications Dimension Y
4.00 in
Specifications Dimension Z
4.00 in
Specifications Material
316 Stainless Steel
Specifications Pulley Type
Wire
Specifications Spacer Part
S0429-132222
Specifications Weight
1.25 (lb)
Specifications Wire Size A
3/8 in
Specifications Working Load Limit Wll
3000 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
