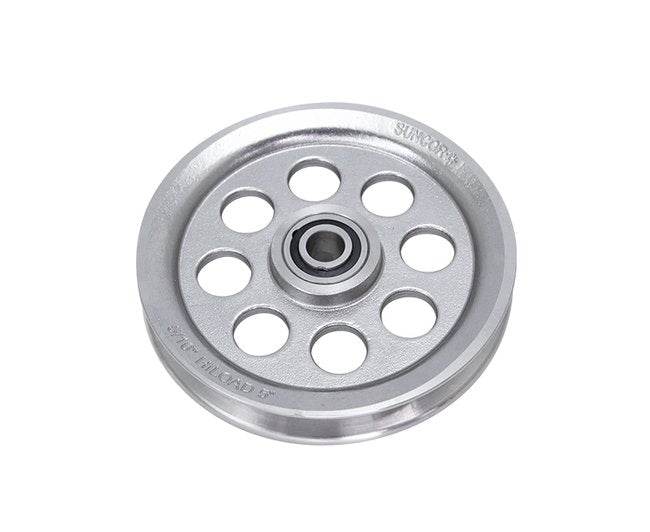

PullPro™ HiLoad 316 Stainless Steel Wire Rope Sheave Bearing - Premium Grade

PullPro™ HiLoad 316 Stainless Steel Wire Rope Sheave Bearing - Premium Grade

SKU:PUL-c61c51

High-load 316 stainless steel wire rope sheave with ball bearing race. Durable, versatile, and corrosion-resistant for safe and reliable operations.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

PullPro™ HiLoad 316 Stainless Steel Wire Rope Sheave Bearing - Premium Grade

PullPro™ HiLoad 316 Stainless Steel Wire Rope Sheave Bearing - Premium Grade

$49.99

Quantity: 1

Claim Your Seller Account

PullPro™ HiLoad 316 Stainless Steel Wire Rope Sheave Bearing - Premium Grade

PullPro™ HiLoad 316 Stainless Steel Wire Rope Sheave Bearing - Premium Grade

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PullPro™ HiLoad 316 Stainless Steel Wire Rope Sheave Bearing is engineered for exceptional durability and performance. Crafted from grade 316 stainless steel, this premium shear features a 440C hardened stainless steel ball bearing race to support high static loads and ensure smooth operation. With a wide compatibility range of rope sizes from 1/8" to 3/8", a high D/d ratio, and a full complement ball bearing race, this sheave delivers superior efficiency and safety. Designed with a removable PTFE seal and water-resistant grease, it prevents the ingress of foreign objects and fluids, making it suitable for diverse applications. PullPro™ premium stainless steel sheaves offer longevity, versatility, and reliability, making them ideal for demanding projects.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note
All dimensions are nominal (± 3%) and are subject to change without notice.

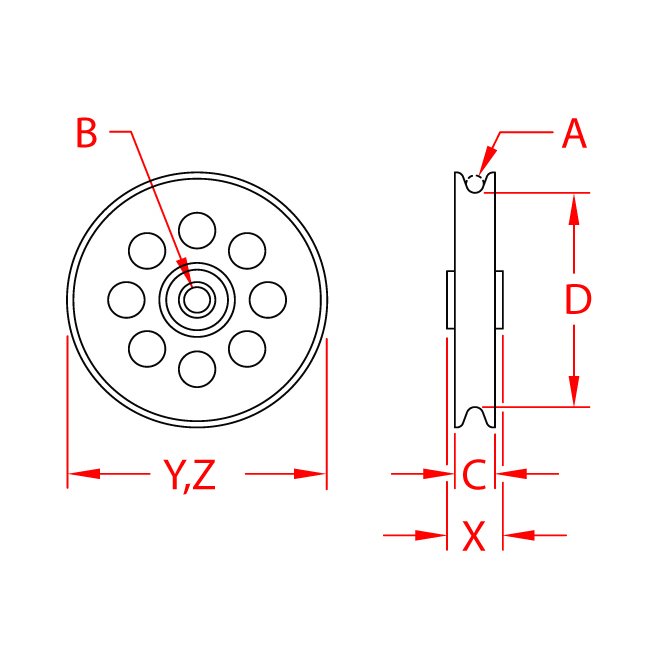

Specifications Dimension B
0.38 in
Specifications Dimension C
0.63 in
Specifications Dimension D
2.42 in
Specifications Dimension X
0.71 in
Specifications Dimension Y
3.00 in
Specifications Dimension Z
3.00 in
Specifications Material
316 Stainless Steel
Specifications Pulley Type
Wire Rope
Specifications Weight
0.50 (lb)
Specifications Wire Size A
3/16 in
Specifications Working Load Limit Wll
1500 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
