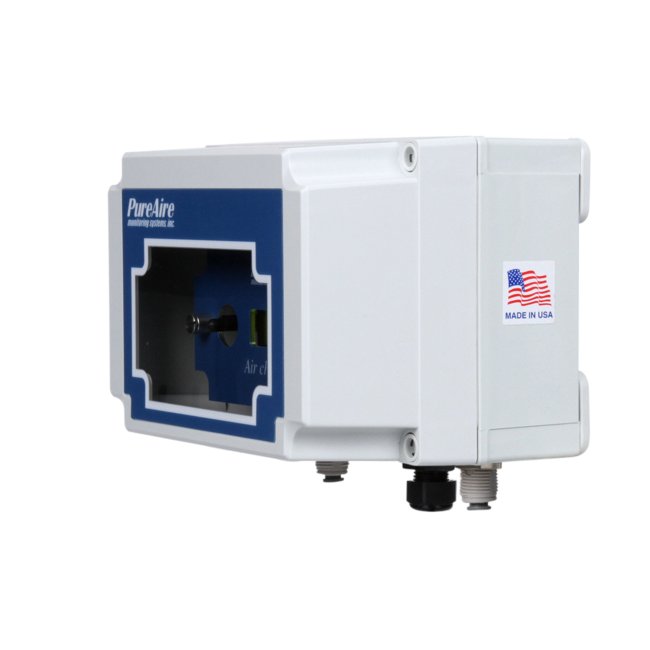

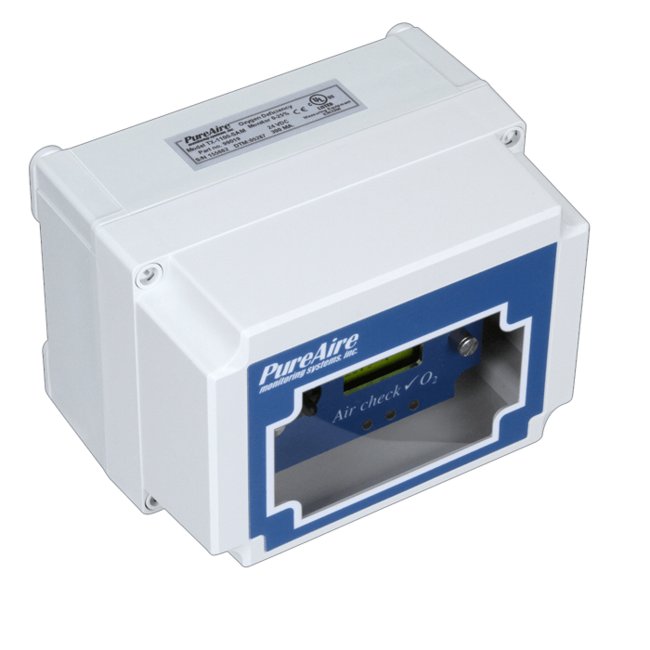

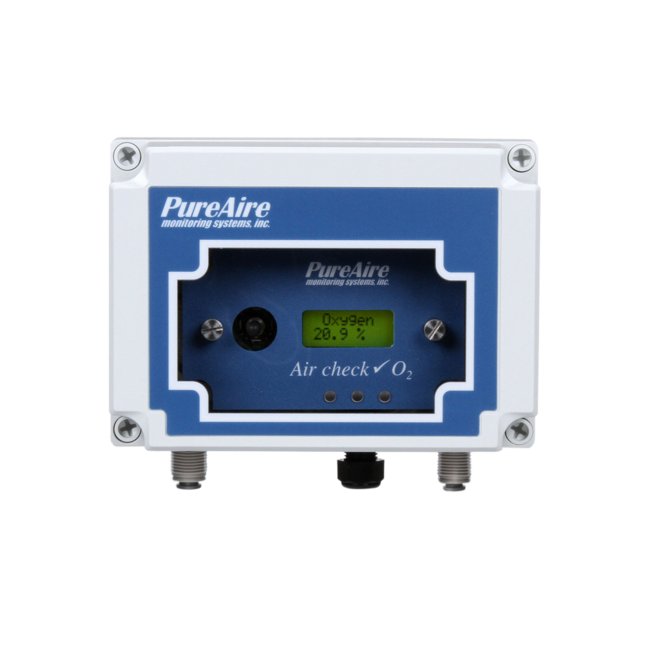

PureAire TX-1100SAM Sample Draw Oxygen Monitor
PureAire TX-1100SAM Sample Draw Oxygen Monitor
SKU:OXY-ac538b
Reliable PureAire oxygen monitor with digital display, dual alarms, and long-life sensor for sterile environments.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
PureAire TX-1100SAM Sample Draw Oxygen Monitor
$899.99
Quantity: 1
Claim Your Seller Account
PureAire TX-1100SAM Sample Draw Oxygen Monitor
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PureAire TX-1100SAM Sample Draw Oxygen Monitor offers precise oxygen monitoring with a digital display and 4-20 mA analog output range. Designed for sterile environments, it features a long-life zirconium oxide sensor cell, dual level alarm relay contacts, and no required calibration adjustments. With UL, C UL, and CE approvals, this monitor ensures accurate and reliable oxygen detection for over 10 years without maintenance needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Options Options
Available without Horn24 VDC Power Supply (P/N 45101)Horn and Strobe Combo (P/N 42002)Remote Display (P/N 99091)
Specifications Accuracy
± 1 % of Full Scale
Specifications Current
300 mA
Specifications Depth
6 in | 127 mm
Specifications Digital Display Analog Output Range
4 to 20 mA
Specifications Direct Current Dc Voltage
24 V
Specifications Display
3/4" LCD Digital Display, Back Lit
Specifications Enclosure Material
Polycarbonate
Specifications Gases Detected
Oxygen (O2)
Specifications Height
5 in | 152.4 mm
Specifications Operating Temperature
-40 to +55 ºC
Specifications Oxygen Range
0 to 25 %
Specifications Required Calibration
NoneNo Zero or Span Pot Adjustment Required
Specifications Sampling Method
Sample Draw
Specifications Sensor Life
> 10 years under Normal Conditions
Specifications Sensor Type
Long life zirconium oxide sensor cell
Specifications Signal Outputs
4-20 mA Analog Output Dual Level Alarm Relay Contacts
Specifications Weight
4.0 lb | 2.0 kg
Specifications Width
7.25 in | 184.2 mm
Standard Features 0
10 + Years No Calibration SensorTwo-Alarm Relays for 19.5% and 18.0%No Maintenance Required3 Year WarrantyNo drift due to thunderstorms or barometric pressure changesWall mounting brackets and optional plug-in wall power supplyBuilt-in Flow Sample PumpUL, C UL and CE Approvals
