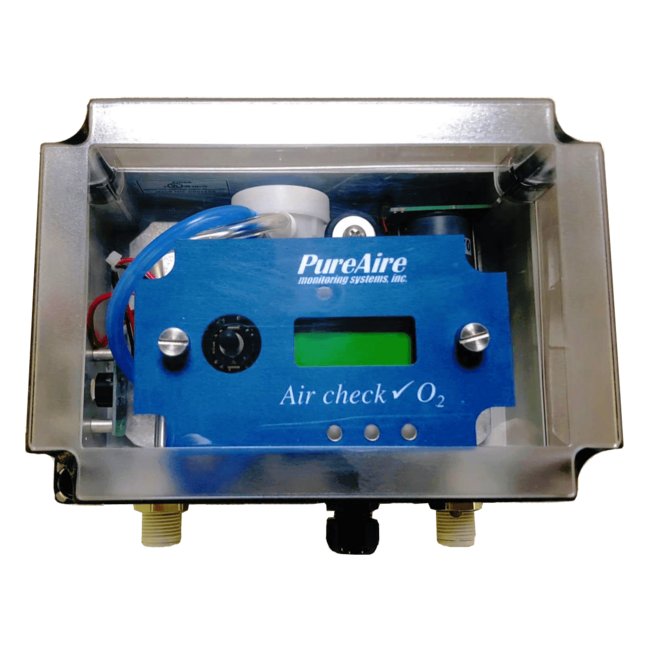

PureAire TX-1100SAM Water Resistant Oxygen Monitor
PureAire TX-1100SAM Water Resistant Oxygen Monitor
SKU:OXY-bec4ca
The PureAire TX-1100SAM Water Resistant Oxygen Monitor: Accurate oxygen detection in water-exposed areas. Dual alarms, IP67 enclosure, no calibration needed.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
PureAire TX-1100SAM Water Resistant Oxygen Monitor
$799.99
Quantity: 1
Claim Your Seller Account
PureAire TX-1100SAM Water Resistant Oxygen Monitor
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PureAire TX-1100SAM Water Resistant Oxygen Monitor is engineered for demanding environments where water exposure is a concern. With a long-life zirconium oxide sensor, this monitor accurately detects oxygen levels from 0 to 25%. It features dual-level alarm relays, 4-20 mA analog output, and an IP67 polycarbonate enclosure, ensuring reliable performance in diverse conditions. The monitor is designed for hassle-free operation with a 10+ year sensor life, no calibration requirements, and a 3-year warranty. Ideal for institutional settings requiring precision and durability.
Product Specifications
Options Options
Available without Horn.24 VDC Power Supply (P/N 45101)Horn and Strobe Combo (P/N 42002)Remote Display (P/N 99091)
Specifications Accuracy
± 1 % of Full Scale
Specifications Current
300 mA
Specifications Depth
6 in | 127 mm
Specifications Digital Display Analog Output Range
4 to 20 mA
Specifications Direct Current Dc Voltage
24 V
Specifications Display
3/4" LCD Digital Display, Back Lit
Specifications Enclosure Material
Polycarbonate IP67
Specifications Gases Detected
Oxygen (O2)
Specifications Height
5 in | 152.4 mm
Specifications Operating Temperature
-40 to +55 ºC
Specifications Oxygen Range
0 to 25 %
Specifications Required Calibration
NoneNo Zero or Span Pot Adjustment Required
Specifications Sampling Method
Sample Draw for Splash Down Areas
Specifications Sensor Life
> 10 years under Normal Conditions
Specifications Sensor Type
Long life zirconium oxide sensor cell
Specifications Signal Outputs
4-20 mA Analog Output Dual Level Alarm Relay Contacts
Specifications Weight
4.0 lb | 2.0 kg
Specifications Width
7.25 in | 184.2 mm
Standard Features 0
10 + Years No Calibration SensorIP67Two-Alarm Relays for 19.5% and 18.0%No Maintenance Required3 Year WarrantyDigital Display, 4-20mA Analog OutputNo drift due to thunderstorms or barometric pressure changesWall mounting brackets and optional plug-in wall power supplyBuilt-in Flow Sample PumpUL, C UL and CE Approvals
