Push-Pull Controls - 918 Series Vertical Gear Shifter System

Push-Pull Controls - 918 Series Vertical Gear Shifter System

PUS-c900ce

Enhance gear shifting efficiency with the 918 Series Vertical Gear Shifter System.

$129.99
$129.99
Sale

Initiate Order

Push-Pull Controls - 918 Series Vertical Gear Shifter System

Push-Pull Controls - 918 Series Vertical Gear Shifter System

$129.99

Quantity: 1

Claim Your Seller Account

Push-Pull Controls - 918 Series Vertical Gear Shifter System

Push-Pull Controls - 918 Series Vertical Gear Shifter System

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

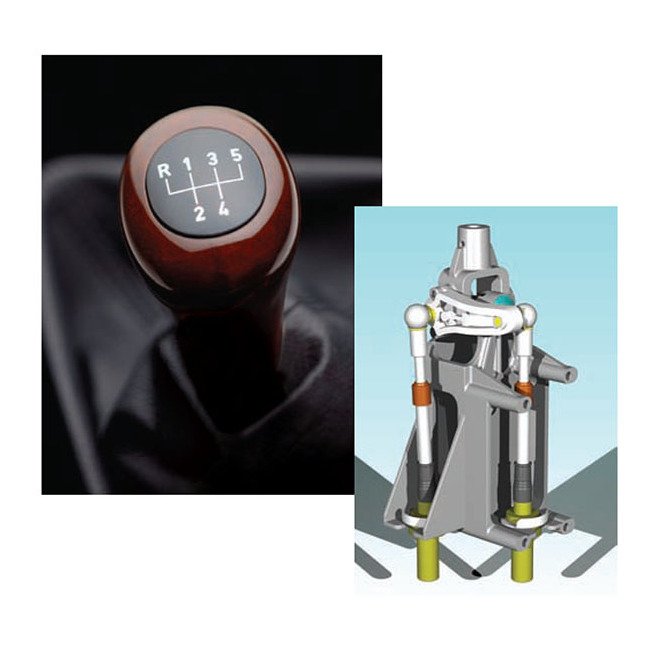

The 918 Series Vertical Gear Shifter System is an innovative solution designed for seamless gear shifting in small commercial vehicles, buses, agricultural vehicles, and more. This system offers superior performance with features like easy installation, maintenance-free operation, clean precise shifts, and reduced cab noise levels. With a normal working load of 3 to 5 kg and an accidental overload capacity of 100 kg, this gear shifter ensures reliable operation in diverse applications. Additionally, the design flexibility to accommodate various cable end fittings makes it a versatile choice for customized installations.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications 0
Dash or center console mounted shifterSmall commercial vehiclesServo assisted transmission - bus & coach applicationsLight plant/agricultural vehiclesLow/medium duty cable applications
Features 0
Easy installation, adjustment freeMaintenance-free lifeEnds gear jump outClean precise shiftsNo knob-to-cab relative movement in floating cabsNo action required to tilt cabVibration from drive train is not transmittedReduced cab noise levelsLow costInstallation design to customer requirementsFlexible capability with different cable end fittings
Material 0
Pressure Die-Cast Aluminum
Specifications Accidental Overload Knob
100 kg | 220 lb
Specifications Approximate Recommended Handle Length
6-1/4 to 8-1/4 "
Specifications Normal Working Load Knob
3 to 5 kg | 6.6 to 11 lb
Specifications Note

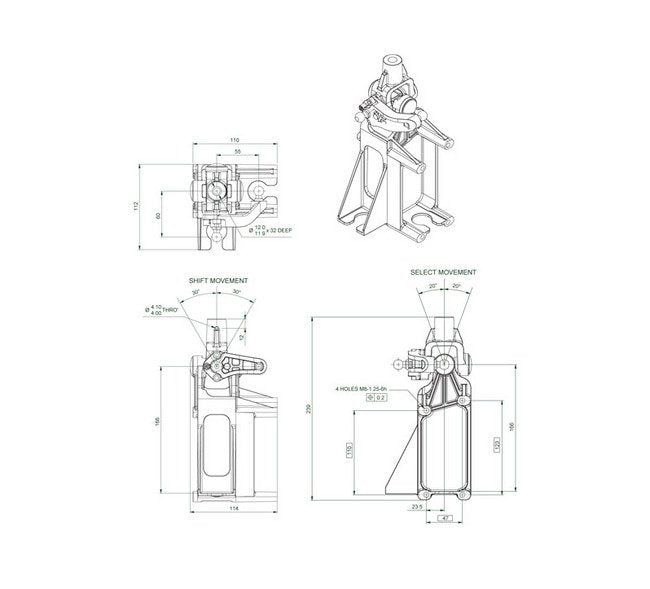

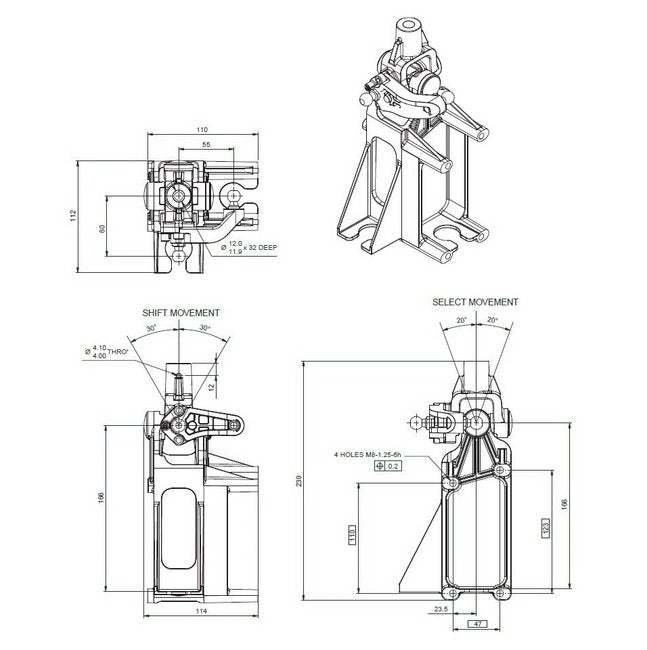

All line art dimensions are represented as follows: in (mm)3D CAD Models available upon request.
Specifications Operating Temperature
-40 to 120 ºC | -40 to 248 ºF
Specifications Recommended Handle Length
160 to 220 mm
Specifications Weight
1.1 kg | 2.4 lb
