PVC Tuff Guard Gauge Isolator with EPDM Diaphragm
PVC Tuff Guard Gauge Isolator with EPDM Diaphragm
SKU:GAU-427d84
Precision-engineered PVC Tuff Guard Gauge Isolator for accurate pressure transmission, with durable construction for industrial applications.
Regular price
$578.50
Regular price
Sale price
$578.50
Unit price
per
Initiate Order
PVC Tuff Guard Gauge Isolator with EPDM Diaphragm
$578.50
Quantity: 1
Claim Your Seller Account
PVC Tuff Guard Gauge Isolator with EPDM Diaphragm
$578.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

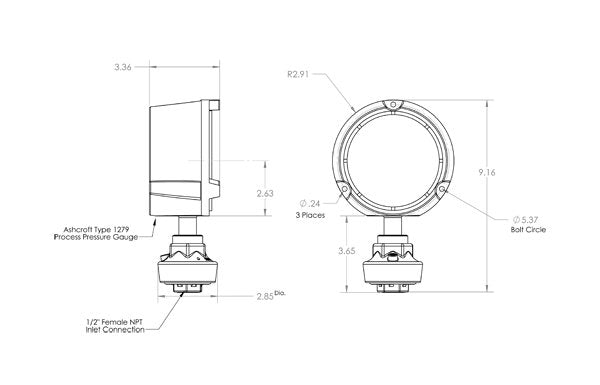

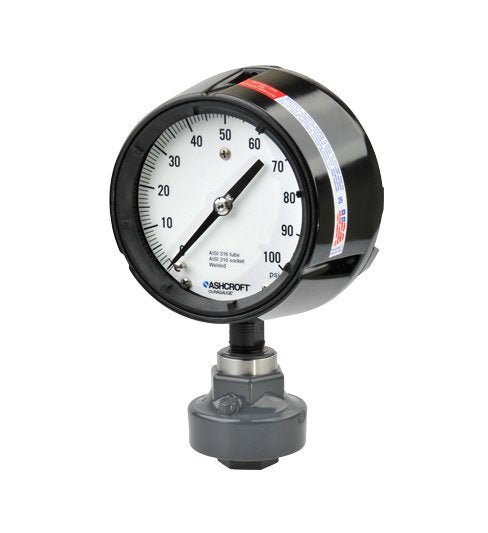

The PVC Tuff Guard Gauge Isolator with EPDM Diaphragm is engineered for precision pressure transmission, featuring a convoluted diaphragm for accuracy, stainless steel reinforced instrument connection, and ANSI Schedule 120 compliant construction. Its compressive spoke ribs ensure reliable tensile stress transfer, with a low-profile design to eliminate dead volume. This assembly includes a 4.5" Ashcroft Duragauge Process Gauge, glycerin-filled and calibrated for 0-100 PSI range, offering longevity with patented Duratube™ technology and PTFE-coated stainless steel rotary movement. Ideal for industrial applications that demand durability and performance.
Product Specifications
Specifications Inlet Connection
1/4" Female NPT
Specifications List Price
578.5 USD
Specifications Materials
PVC, EPDM Diaphragm
Specifications Pressure Range
0-100 PSI
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
