PVC Tuff Guard Isolator 1/4" Vent x 1/2" Female NPT, Modified PTFE Diaphragm

Name: PVC Tuff Guard Isolator 1/4" Vent x 1/2" Female NPT, Modified PTFE Diaphragm
Brand: Marquest Scientific, Inc.
SKU: GAU-2b96d3
Price: 87.95 USD
Availability: OutOfStock

SKU:GAU-2b96d3

High-quality PVC Tuff Guard Isolator with modified PTFE diaphragm for accurate pressure transmission. Meets FDA, USDA, and USDA standards. Maximum PSI: 250.

$87.95

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

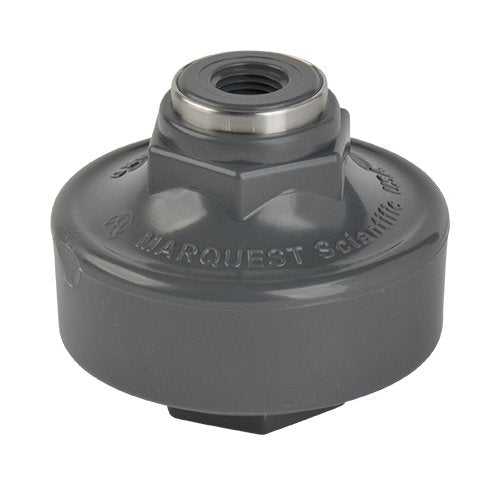

The PVC Tuff Guard Isolator is a high-quality gauge isolator designed to protect and isolate pressure sensing instruments. It features a modified PTFE diaphragm for accurate pressure transmission, meeting FDA, USDA, and USDA standards. With a maximum PSI of 250, stainless steel reinforced connections, and a reinforced process connection with compressive spoke ribs, this isolator ensures reliable performance. The low-profile design eliminates dead volume, while integral wrench provisions allow for easy field service. Self-venting internal shape and fill/bleed port provision make filling a breeze. Backed by a 3-year warranty, this isolator is a durable and dependable choice.

Product Specifications

Specifications Instrument X Process Conn

1/4" Vent x 1/2" Female NPT

Specifications List Price

87.95 USD

Specifications Materials

PVC, PTFE Diaphragm

Specifications Max Psi

250 PSI

Specifications Shipping Note

We will let you know the shipping charges once we receive the order.
