PVC Tuff Guard Isolator - Modified PTFE Diaphragm
PVC Tuff Guard Isolator - Modified PTFE Diaphragm
SKU:GAU-138e45
Reliable PVC Tuff Guard Isolator with Modified PTFE Diaphragm for precise pressure sensing instrument protection and isolation.
Regular price
$96.95
Regular price
Sale price
$96.95
Unit price
per
Initiate Order
PVC Tuff Guard Isolator - Modified PTFE Diaphragm
$96.95
Quantity: 1
Claim Your Seller Account
PVC Tuff Guard Isolator - Modified PTFE Diaphragm
$96.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

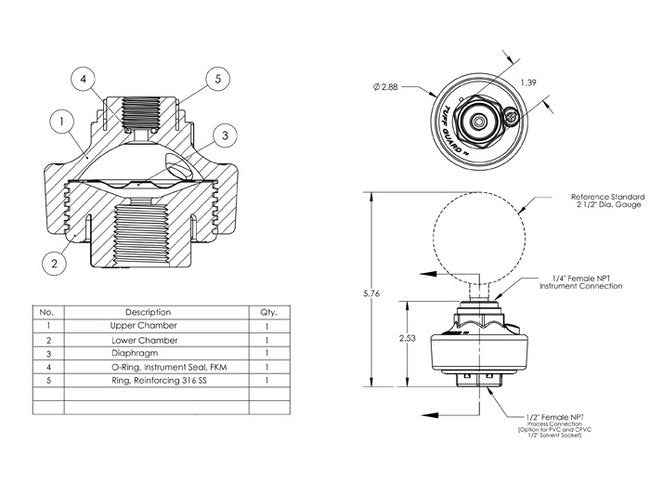

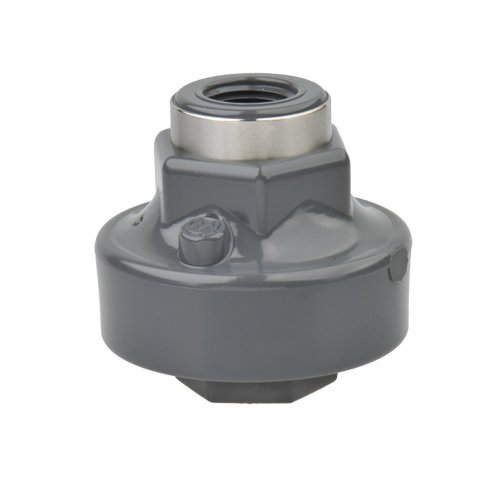

The PVC Tuff Guard Isolator features a robust construction with a Modified PTFE Diaphragm, providing reliable protection and isolation for pressure sensing instruments. Designed with a 1/2" Vent Fem NPT x 1/2" Solvent Soc Inlet Process, this isolator ensures accurate pressure transmission with its convoluted diaphragm. The PVC material meets stringent standards including FDA, USDA, and USP. With a self-venting internal shape for easy filling and a low profile design to eliminate dead volume, this isolator is equipped with integral wrench provisions for field service and maintenance. Reinforced connections and a 3-year product warranty guarantee durability and performance excellence.
Product Specifications
Specifications Instrument X Process Conn
1/2" Vent x 1/2" Socket
Specifications List Price
96.95 USD
Specifications Materials
PVC, PTFE Diaphragm
Specifications Max Psi
250 PSI
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
