PVDF Air Knife - 18 Inch Airflow Length
PVDF Air Knife - 18 Inch Airflow Length
SKU:SUP-c0a4ee
Efficiently clean, dry, & cool parts with the PVDF Air Knife - 18 Inch Airflow Length: quiet, high-performance solution with 40:1 air amplification.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
PVDF Air Knife - 18 Inch Airflow Length
$349.99
Quantity: 1
Claim Your Seller Account
PVDF Air Knife - 18 Inch Airflow Length
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

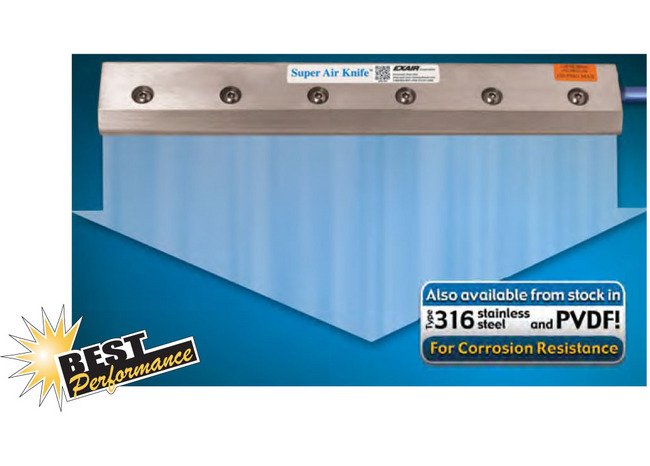

The PVDF Air Knife - 18 Inch Airflow Length is a high-efficiency solution for cleaning, drying, or cooling parts, webs, or conveyors with exceptional performance. Made of Polyvinylidene Fluoride, it delivers a uniform sheet of laminar airflow with powerful force, reducing compressed air usage and noise significantly. This Super Air Knife is compact, rugged, and easy to install, with minimal air consumption and maintenance requirements. With a quiet operation of 69 dBA, it meets OSHA's pressure and noise standards, offering advantages like 40:1 air amplification, varied force and flow options, and corrosion resistance for demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Advantages
40:1 Air Amplification | Compact, Rugged, Easy to Install | Easy Mounting - Compressed Air Inlets on Each End and Bottom | Minimal Air Consumption | No Moving Parts - Maintenance Free | Quiet - 69 dBA for Most Applications | Recessed Hardware | Special Lengths Available | Stainless Steel Screws in all Models | Stock lengths to 108 inch (2743 mm) in Aluminum, 303 Stainless Steel, and 316 Stainless Steel (SS - for temperatures up to 800°F (427°C), food processing or corrosive environments), and PVDF up to 54" (1372 mm) for superior corrosion resistance. | Uniform Airflow Across Entire Length | Unlimited System Lengths of Uninterrupted Airflow Available | Variable Force and Flow
Specifications Airflow Length
18 in | 457 mm
Specifications Applications
Bag Opening/Filling Operations | Conveyor Cleaning | Environmental Separation | Part Drying after Wash | Part or Component Cooling | Pre-paint Blowoff | Scrap Removal on Converting Operations | Sheet Cleaning in Strip Mills | Web Drying or Cleaning
Specifications Material
Polyvinylidene Fluoride (PVDF)
Specifications Thickness
1.81 in | 46 mm
Specifications Width
1.44 in | 37 mm
