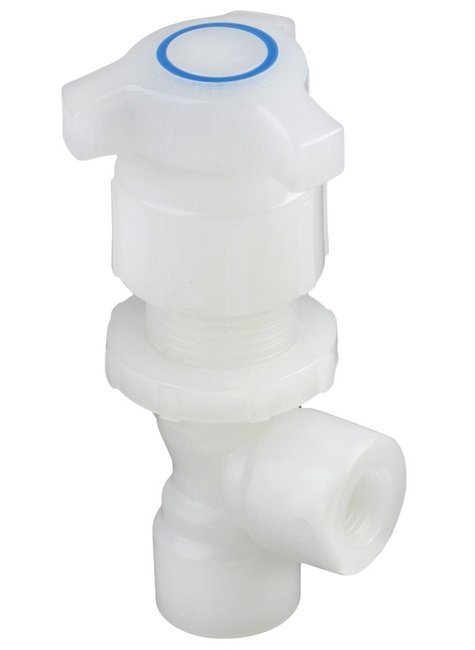

PVDF Angle Pattern Needle Valve 1/4" Female NPT

Name: PVDF Angle Pattern Needle Valve 1/4" Female NPT
Brand: Marquest Scientific, Inc.
SKU: PLA-3936b2
Price: 174.5 USD
Availability: OutOfStock

SKU:PLA-3936b2

Achieve precise flow control with our PVDF Angle Pattern Needle Valve, ideal for corrosive fluids. NSF rated.

$174.50

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PVDF Angle Pattern Needle Valve offers precise flow control for corrosive and high purity fluids. With a Cv value of 0.426, this valve ensures fine adjustment and bubble-tight, low torque shut-off. Featuring 24 pitch metering thread for 20% finer control, PTFE sealed for chemical resistance, and integrally designed panel mounting, this needle valve is ideal for applications requiring no corrosion or contamination. Constructed with PVDF and PTFE seal, it meets NSF Std 14 & 61 Ratings.

Product Specifications

Materials Of Construction 0

Needle Finish, SPI/SPE # 1Bubble tight, low torque shut-off. Proven three prong, star handleTri-Oval geometryFast open/close operationFine metering control. 24 pitch metering thread20% finer control adjustment Integrally designed panel mountingNo fasteners requiredMounts to panel thicknesses from 1/32" to 1/2" PTFE SealedChemical resistanceHigh Purity No Elastomers (O-rings), metals or lubricantsNo corrosionNo contamination Materials of Construction.PVC is NSF Std 14 & 61 RatedCPVC is NSF Std 14 & 61 RatedPP is natural (unpigmented), reinforcedPVDF is NSF Std 14 & 61 Rated

Specifications Cv Factor

0.426

Specifications Inlet X Outlet

1/4" Female NPT

Specifications List Price

174.5 USD

Specifications Materials

PVDF, PTFE Seal

Specifications Shipping Note

We will let you know the shipping charges once we receive the order.

Specifications Style

Angle Pattern

PVDF Angle Pattern Needle Valve 1/4" Female NPT
