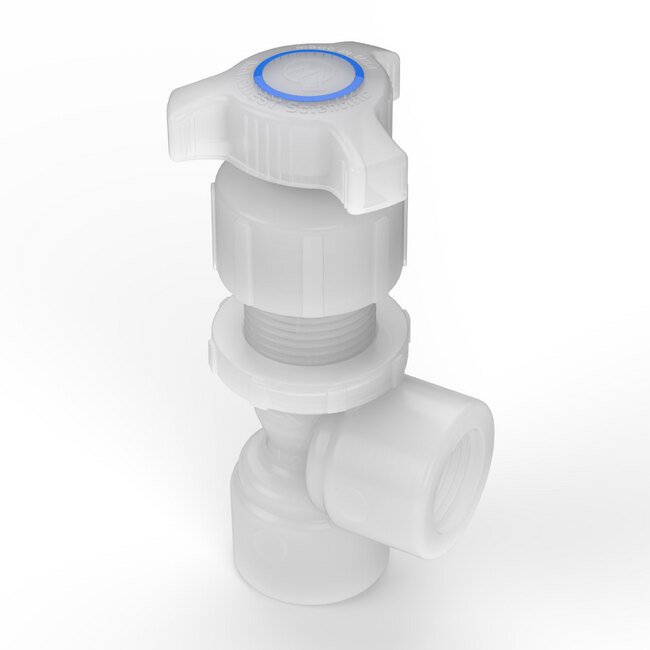

PVDF Angle Pattern Throttle Master Needle Valve 1/2" x 1/2"
PVDF Angle Pattern Throttle Master Needle Valve 1/2" x 1/2"
SKU:PLA-ace4dc
Achieve precise flow control of corrosive fluids with the PVDF Angle Pattern Throttle Valve. Chemical-resistant, bubble-tight shut-off for high purity applications.
Regular price
$174.50
Regular price
Sale price
$174.50
Unit price
per
Initiate Order
PVDF Angle Pattern Throttle Master Needle Valve 1/2" x 1/2"
$174.50
Quantity: 1
Claim Your Seller Account
PVDF Angle Pattern Throttle Master Needle Valve 1/2" x 1/2"
$174.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PVDF Angle Pattern Throttle Master Needle Valve is designed for precise flow control of corrosive and high purity fluids. With a Cv Value of 0.780, this valve offers fine adjustment and bubble-tight, low torque shut-off. Its 24 pitch metering thread allows for 20% finer control, while the PTFE seal ensures chemical resistance and high purity. Integrally designed for panel mounting without the need for fasteners, this valve is free from elastomers, metals, or lubricants, preventing corrosion and contamination. Constructed with PVDF and PTFE seal, it meets NSF Std 14 & 61 Rated standards.
Product Specifications
Materials Of Construction 0
Needle Finish, SPI/SPE # 1Bubble tight, low torque shut-off. Proven three prong, star handleTri-Oval geometryFast open/close operationFine metering control. 24 pitch metering thread20% finer control adjustment Integrally designed panel mountingNo fasteners requiredMounts to panel thicknesses from 1/32" to 1/2" PTFE SealedChemical resistanceHigh Purity No Elastomers (O-rings), metals or lubricantsNo corrosionNo contamination Materials of Construction.PVC is NSF Std 14 & 61 RatedCPVC is NSF Std 14 & 61 RatedPP is natural (unpigmented), reinforcedPVDF is NSF Std 14 & 61 Rated
Specifications Cv Factor
0.780
Specifications Inlet X Outlet
1/2" Female NPT
Specifications List Price
174.5 USD
Specifications Materials
PVDF, PTFE Seal
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
Specifications Style
Angle Pattern
