PVDF Ball Valve Pump - 1.5'' S15 Standard Duty Top Discharge
PVDF Ball Valve Pump - 1.5'' S15 Standard Duty Top Discharge
SKU:PRO-f983be
Reliable PVDF Ball Valve Pump for water/wastewater with top discharge port & 100 gpm flow rate. Ideal for institutional use.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
PVDF Ball Valve Pump - 1.5'' S15 Standard Duty Top Discharge
$1,899.99
Quantity: 1
Claim Your Seller Account
PVDF Ball Valve Pump - 1.5'' S15 Standard Duty Top Discharge
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PVDF Ball Valve Pump delivers reliable performance for water, wastewater, and utility applications. With a top discharge port, PVDF construction, and 100 gpm max flow rate, this pump is ideal for institutional use requiring durability and efficiency. Its compliance with industry standards ensures seamless integration into government operations.
Product Specifications
Curves 0

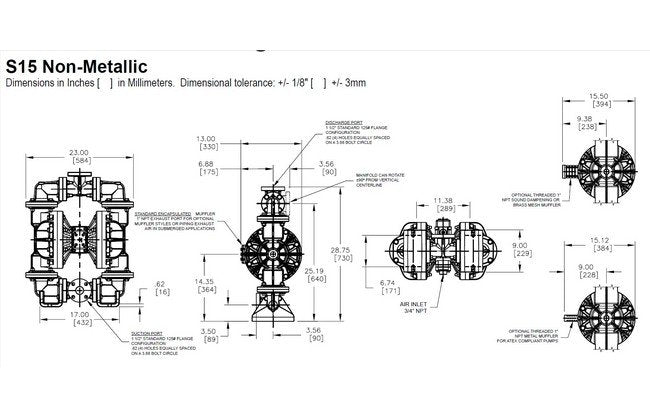

Dimensions 0
Dimensions
Specifications Check Valve Seat
PVDF
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Displacement Per Stroke
0.43 gal | 1.63 lit
Specifications Height
29 in | 730.25 mm
Specifications Inlet Size
1.5 Universal ANSI/DIN Flange in | 38 Universal ANSI/DIN Flange mm
Specifications Length
23 in | 0.5842 m | 584.20 mm
Specifications Max Flow Rate
100 gpm | 6000.00 gph | 378.54 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Porting Position
Top Discharge
Specifications Sku
WRS15B3KZKPUS000SP
Specifications Solids Handling
0.47 in | 12 mm
Specifications Weight
112 lbs | 50.80 kg | 50.80 Kilogram
Specifications Wetted Moc
PVDF
Specifications Width
13 in | 0.3302 m | 330.20 mm
Category 6
Standard Duty Diaphragm Pumps
