PVDF Ball Valve Pump for Institutional Use

Name: PVDF Ball Valve Pump for Institutional Use
Brand: Springer Pumps, LLC
SKU: PRO-6f1826
Price: 1599.99 USD
Availability: OutOfStock

SKU:PRO-6f1826

High-performance PVDF Ball Valve Pump for institutional fluid handling needs.

$1,599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

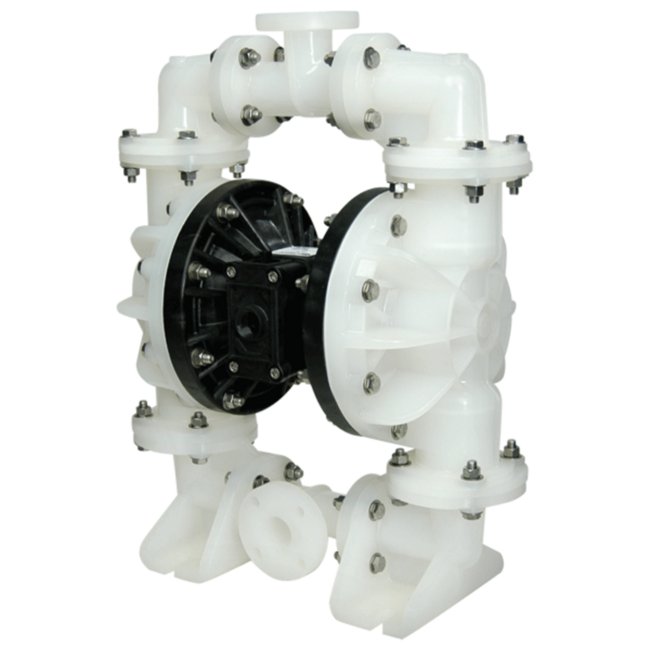

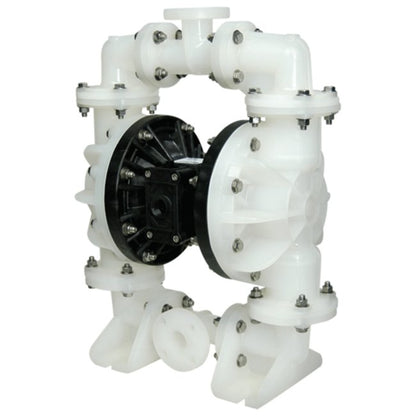

The 1 1/2" Standard Duty S15 Top Discharge PVDF Ball Valve Pump is a reliable solution for institutional applications. With a durable PVDF construction and top discharge porting, this pump can handle moderately abrasive fluids and suspended solids effectively. It features a ball check valve and non-metallic components for enhanced chemical resistance. This pump's 0.43 gal displacement per stroke and 100 gpm max flow rate ensure efficient fluid handling. Ideal for water, wastewater, and utility systems, this pump is designed to meet the demands of institutional setups, ensuring long-term performance and reliability.

Product Specifications

Curves 0

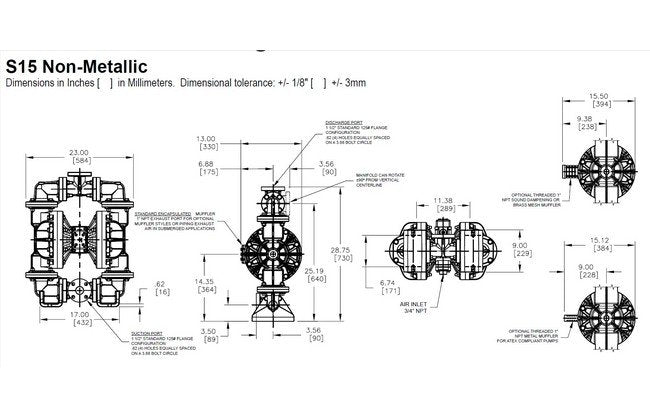

Dimensions 0

Dimensions

Specifications Check Valve Seat

PVDF

Specifications Check Valve Type

Ball

Specifications Customs Code

HS Code 84131900ECCN Code EAR99

Specifications Displacement Per Stroke

0.43 gal | 1.63 lit

Specifications Height

29 in | 730.25 mm

Specifications Inlet Size

1.5 Universal ANSI/DIN Flange in | 38 Universal ANSI/DIN Flange mm

Specifications Length

23 in | 0.5842 m | 584.20 mm

Specifications Max Flow Rate

100 gpm | 6000.00 gph | 378.54 lpm

Specifications Non Wetted Material

Polypropylene

Specifications Porting Position

Top Discharge

Specifications Sku

WRS15B3K2KPUS000SP

Specifications Solids Handling

0.47 in | 12 mm

Specifications Weight

112 lbs | 50.80 kg | 50.80 Kilogram

Specifications Wetted Moc

PVDF

Specifications Width

13 in | 0.3302 m | 330.20 mm

Category 6

Standard Duty Diaphragm Pumps
