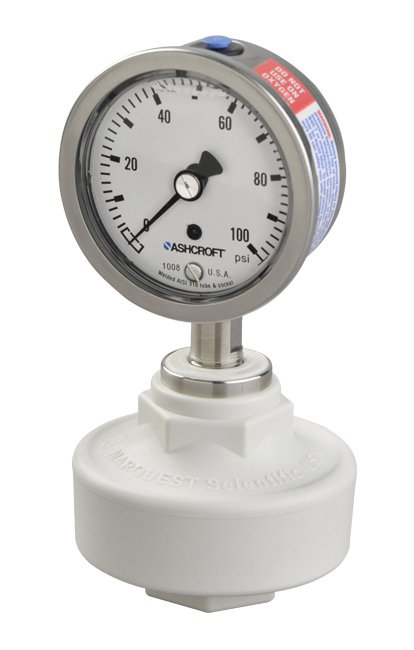

PVDF Gauge Isolator with All Stainless Steel Ashcroft Gauge
PVDF Gauge Isolator with All Stainless Steel Ashcroft Gauge
SKU:GAU-fca722
Protect pressure sensing instruments with precision using our PVDF Gauge Isolator & All Stainless Ashcroft Gauge. Reliable, accurate, and low maintenance.
Regular price
$381.50
Regular price
Sale price
$381.50
Unit price
per
Initiate Order
PVDF Gauge Isolator with All Stainless Steel Ashcroft Gauge
$381.50
Quantity: 1
Claim Your Seller Account
PVDF Gauge Isolator with All Stainless Steel Ashcroft Gauge
$381.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PVDF Gauge Isolator with EPDM Diaphragm ensures total isolation and protection for pressure sensing instruments. Featuring a 1/2" Female NPT Inlet Connection and a 0-30 PSI All Stainless Steel Ashcroft Gauge, this unit offers a convoluted diaphragm for accurate pressure transmission, reinforced connections, and a low-profile design eliminating dead volume. With a replaceable diaphragm, integral wrench provisions, and self-venting internal shape, this isolator provides ease of use and maintenance. Built to exceed ANSI Schedule 120, this product is ideal for critical applications requiring precision and reliability.
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE®, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0
The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No metals or lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.
Specifications Inlet Connection
1/2" Female NPT
Specifications Installed Gauge
0-30 PSI, All Stainless
Specifications List Price
381.5 USD
Specifications Materials
PVDF, EPDM Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
