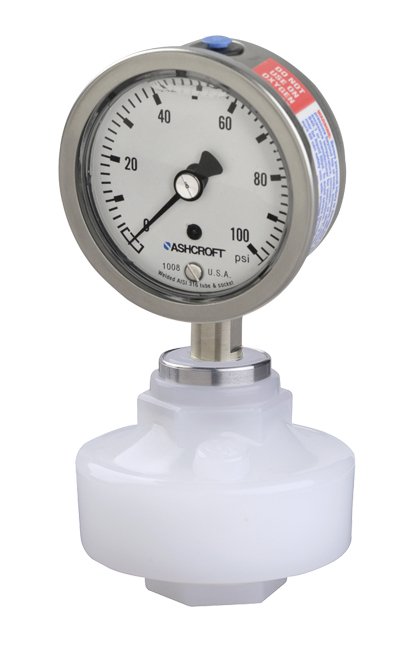

PVDF Gauge Isolator with Stainless Steel Diaphragm and Ashcroft Gauge
PVDF Gauge Isolator with Stainless Steel Diaphragm and Ashcroft Gauge
SKU:GAU-ff85ab
Reliable PVDF Gauge Isolator for precise pressure sensing and easy maintenance.
Regular price
$370.50
Regular price
Sale price
$370.50
Unit price
per
Initiate Order
PVDF Gauge Isolator with Stainless Steel Diaphragm and Ashcroft Gauge
$370.50
Quantity: 1
Claim Your Seller Account
PVDF Gauge Isolator with Stainless Steel Diaphragm and Ashcroft Gauge
$370.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled protection and isolation for pressure sensing instruments with our PVDF Gauge Isolator. Featuring a modified PTFE diaphragm and a robust stainless steel reinforced instrument connection, this isolator ensures accurate pressure transmission. With a wall thickness meeting/exceeding ANSI standards and a self-venting internal shape, it offers easy filling and maintenance. The low profile design eliminates dead volume, and the reinforced process connection guarantees durability. Self-vent capability and a 3-year warranty make this isolator a reliable choice for industrial applications.
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE®, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0
The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.
Specifications Inlet Connection
1/2" Female NPT
Specifications Installed Gauge
0-160 PSI, All Stainless
Specifications List Price
370.50 USD
Specifications Materials
PVDF, PTFE Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
