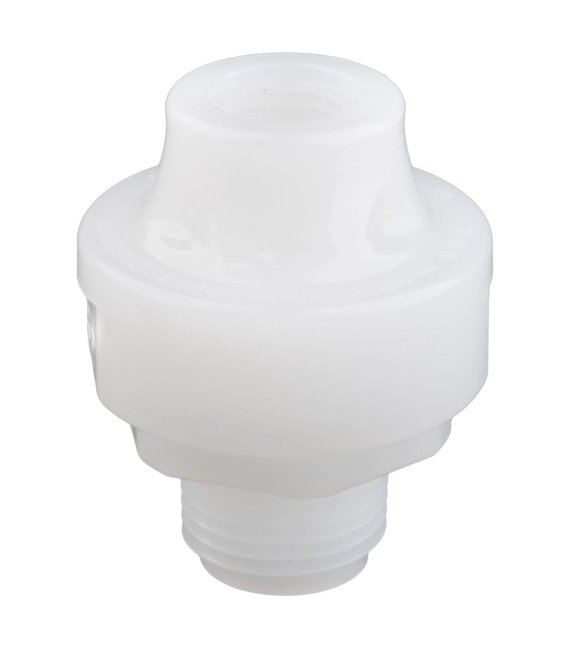

PVDF Mini Tuff Guard Isolator
PVDF Mini Tuff Guard Isolator
SKU:GAU-100a11
Enhance system reliability with the PVDF Mini Tuff Guard Isolator, featuring a compact design and rugged construction. Ideal for protecting instruments from process fluids.
Regular price
$89.50
Regular price
Sale price
$89.50
Unit price
per
Initiate Order
PVDF Mini Tuff Guard Isolator
$89.50
Quantity: 1
Claim Your Seller Account
PVDF Mini Tuff Guard Isolator
$89.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PVDF Mini Tuff Guard Isolator is engineered to provide a reliable barrier safeguarding instruments from process fluids. With an ultra-compact design suitable for space-constrained applications, this isolator boasts a rugged construction for enhanced system integrity. Featuring a composite PTFE/FKM diaphragm and a self-venting 1/4" female NPT instrument connection, it ensures optimal performance. Meeting FDA, USDA, and USP standards, this isolator offers a displacement capacity for gauges up to 2 1/2" in diameter at a max pressure of 250 PSI. Add system resilience and longevity with this cost-effective solution.
Product Specifications
Specifications Instrument X Process Conn
1/4" Fem Vent NPT x 1/2" MNPT
Specifications List Price
89.5 USD
Specifications Materials
PVDF, PTFE/FKM Diaphragm
Specifications Max Psi
250 PSI
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
