PVDF Mini Tuff Guard Isolator - 1/4" Inlet Female NPT (Composite PTFE/FKM Diaphragm)
PVDF Mini Tuff Guard Isolator - 1/4" Inlet Female NPT (Composite PTFE/FKM Diaphragm)
SKU:GAU-6295c4
Reliable PVDF Mini Tuff Guard Isolator with PTFE/FKM Diaphragm & 0-200 PSI Steel Gauge
Regular price
$116.50
Regular price
Sale price
$116.50
Unit price
per
Initiate Order
PVDF Mini Tuff Guard Isolator - 1/4" Inlet Female NPT (Composite PTFE/FKM Diaphragm)
$116.50
Quantity: 1
Claim Your Seller Account
PVDF Mini Tuff Guard Isolator - 1/4" Inlet Female NPT (Composite PTFE/FKM Diaphragm)
$116.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

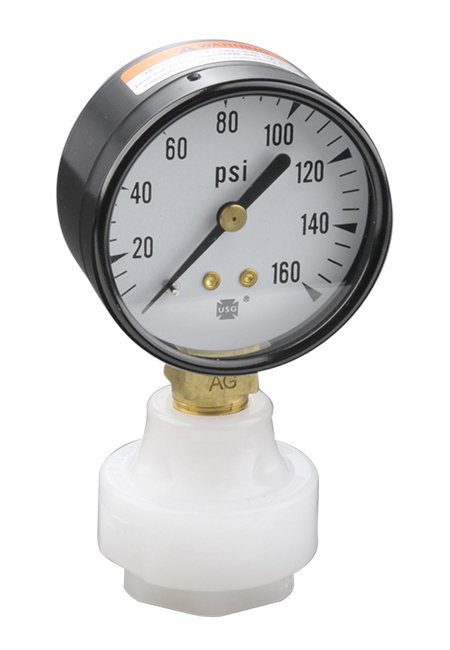

The PVDF Mini Tuff Guard Isolator is designed to provide a protective barrier between process fluids and instruments, ensuring system reliability by eliminating instrument failures. Its rugged, injection-molded construction and ultra-compact size make it ideal for space-constrained applications. This isolator features an integral wrench provision, replaceable diaphragm, and self-venting design. With materials meeting FDA, USDA, and USP standards, including Solef High Purity PVDF and a composite diaphragm of PTFE/FKM, this isolator guarantees quality and safety. The included US Ametek 2" Dia. Black Painted Steel Gauge with Brass Internals ensures accurate readings up to 200 PSI.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Inlet Connection
1/4" Fem NPT
Specifications Installed Gauge
0-200 PSI, Brass, Blk Pntd Steel
Specifications List Price
116.5 USD
Specifications Materials
PVDF, PTFE/FKM Diaph
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
