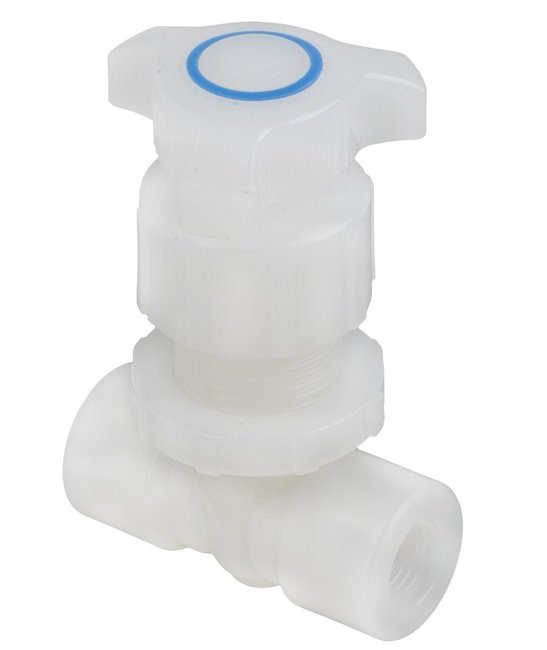

PVDF Needle Valve 1/2" NPT Globe Throttle Master
PVDF Needle Valve 1/2" NPT Globe Throttle Master
SKU:PLA-34b3ec
Achieve precise flow control and high purity with the PVDF Needle Valve. NSF Std 14 & 61 Rated. Corrosion-resistant.
Regular price
$174.50
Regular price
Sale price
$174.50
Unit price
per
Initiate Order
PVDF Needle Valve 1/2" NPT Globe Throttle Master
$174.50
Quantity: 1
Claim Your Seller Account
PVDF Needle Valve 1/2" NPT Globe Throttle Master
$174.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PVDF 1/2" x 1/2" Female NPT Globe Throttle Master Needle Valve offers precise flow control for corrosive and high purity fluids. With a Cv value of 0.620, this valve ensures fine adjustment and bubble-tight, low torque shut-off. The integrally designed panel mounting requires no fasteners and allows for easy installation on various panel thicknesses. Constructed with PVDF and PTFE seal, this needle valve provides chemical resistance, high purity, and eliminates the risk of corrosion and contamination. Compliant with NSF Std 14 & 61, this valve is a reliable choice for industrial applications.
Product Specifications
Materials Of Construction 0
Needle Finish, SPI/SPE # 1Bubble tight, low torque shut-off. Proven three prong, star handleTri-Oval geometryFast open/close operationFine metering control. 24 pitch metering thread20% finer control adjustment Integrally designed panel mountingNo fasteners requiredMounts to panel thicknesses from 1/32" to 1/2" PTFE SealedChemical resistanceHigh Purity No Elastomers (O-rings), metals or lubricantsNo corrosionNo contamination Materials of Construction.PVC is NSF Std 14 & 61 RatedCPVC is NSF Std 14 & 61 RatedPP is natural (unpigmented), reinforcedPVDF is NSF Std 14 & 61 Rated
Specifications Cv Factor
0.620
Specifications Inlet X Outlet
1/2" Female NPT
Specifications List Price
174.5 USD
Specifications Materials
PVDF, PTFE Seal
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
Specifications Style
Globe, Straight Pattern
