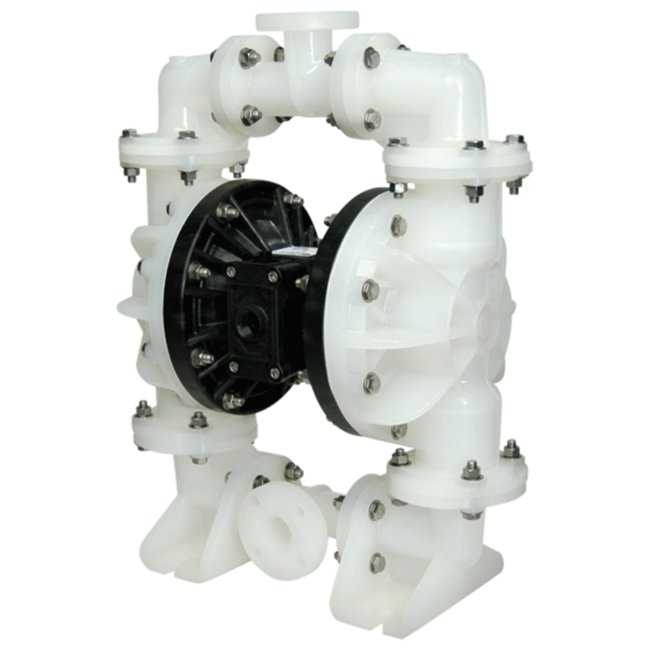

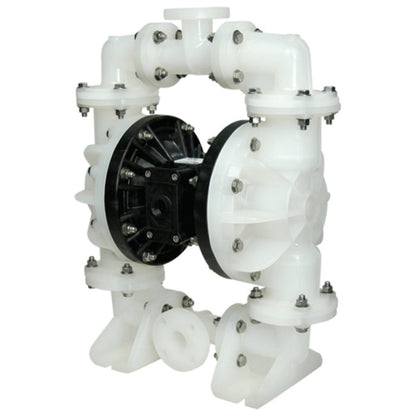

PVDF Top Discharge Ball Valve Diaphragm Pump
PVDF Top Discharge Ball Valve Diaphragm Pump
SKU:PRO-3d4c27
Reliable PVDF Ball Valve Diaphragm Pump for Waste Water Applications
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
PVDF Top Discharge Ball Valve Diaphragm Pump
$1,899.99
Quantity: 1
Claim Your Seller Account
PVDF Top Discharge Ball Valve Diaphragm Pump
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PVDF Top Discharge Ball Valve Diaphragm Pump is a versatile solution for handling moderately abrasive fluids and solids. Constructed with durable PVDF wetted materials and polypropylene non-wetted components, it offers reliable performance with a 1.5" ANSI/DIN flange inlet, 0.43 gal displacement per stroke, and a max flow rate of 100 gpm. Suitable for waste water applications, this pump ensures efficiency and durability.
Product Specifications
Curves 0

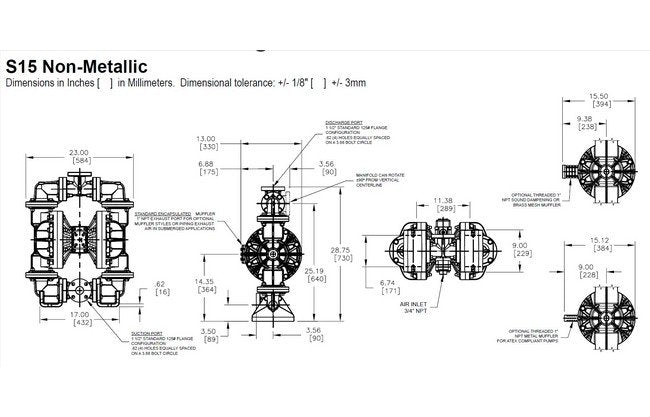

Dimensions 0
Dimensions
Specifications Check Valve Seat
PVDF
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Displacement Per Stroke
0.43 gal | 1.63 lit
Specifications Height
29 in | 730.25 mm
Specifications Inlet Size
1.5 Universal ANSI/DIN Flange in | 38 Universal ANSI/DIN Flange mm
Specifications Length
23 in | 0.5842 m | 584.20 mm
Specifications Max Flow Rate
100 gpm | 6000.00 gph | 378.54 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Porting Position
Top Discharge
Specifications Sku
WRS15B3KCKPUS000SP
Specifications Solids Handling
0.47 in | 12 mm
Specifications Weight
112 lbs | 50.80 kg | 50.80 Kilogram
Specifications Wetted Moc
PVDF
Specifications Width
13 in | 0.3302 m | 330.20 mm
Category 6
Standard Duty Diaphragm Pumps
