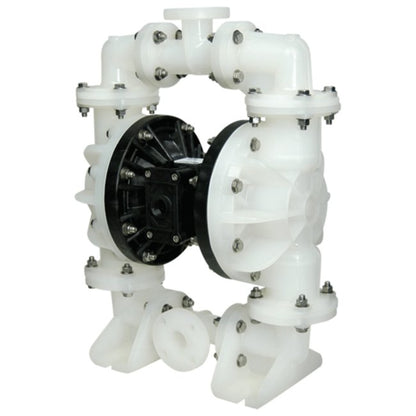

PVDF Top Discharge Ball Valve Diaphragm Pump - 1.5"
PVDF Top Discharge Ball Valve Diaphragm Pump - 1.5"
SKU:PRO-53509e
Durable and efficient PVDF Ball Valve Diaphragm Pump for standard duty applications, ideal for water and wastewater handling.
Regular price
$1,899.00
Regular price
Sale price
$1,899.00
Unit price
per
Initiate Order
PVDF Top Discharge Ball Valve Diaphragm Pump - 1.5"
$1,899.00
Quantity: 1
Claim Your Seller Account
PVDF Top Discharge Ball Valve Diaphragm Pump - 1.5"
$1,899.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PVDF Top Discharge Ball Valve Diaphragm Pump is designed for standard duty applications, handling moderately abrasive fluids and suspended solids efficiently. Constructed with PVDF wetted M.O.C. and Polypropylene non-wetted material, it offers exceptional durability and reliability. With a max flow rate of 100 gpm and a solids handling capability of 0.47 inches, this pump ensures optimal performance for water, wastewater, and utility applications.
Product Specifications
Curves 0

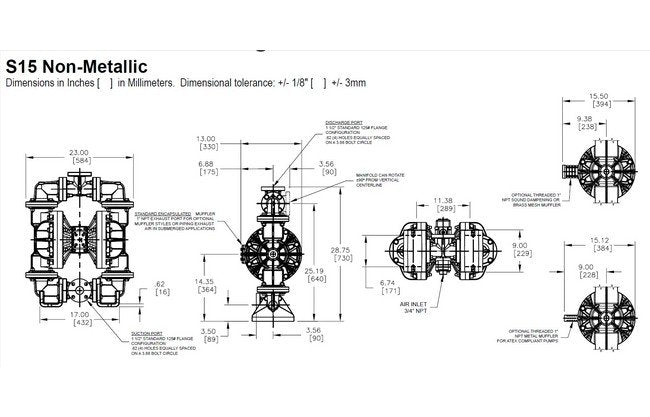

Dimensions 0
Dimensions
Specifications Check Valve Seat
PVDF
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Displacement Per Stroke
0.43 gal | 1.63 lit
Specifications Height
29 in | 730.25 mm
Specifications Inlet Size
1.5 Universal ANSI/DIN Flange in | 38 Universal ANSI/DIN Flange mm
Specifications Length
23 in | 0.5842 m | 584.20 mm
Specifications Max Flow Rate
100 gpm | 6000.00 gph | 378.54 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Porting Position
Top Discharge
Specifications Sku
WRS15B3KGKPUS000SP
Specifications Solids Handling
0.47 in | 12 mm
Specifications Weight
112 lbs | 50.80 kg | 50.80 Kilogram
Specifications Wetted Moc
PVDF
Specifications Width
13 in | 0.3302 m | 330.20 mm
Category 6
Standard Duty Diaphragm Pumps
