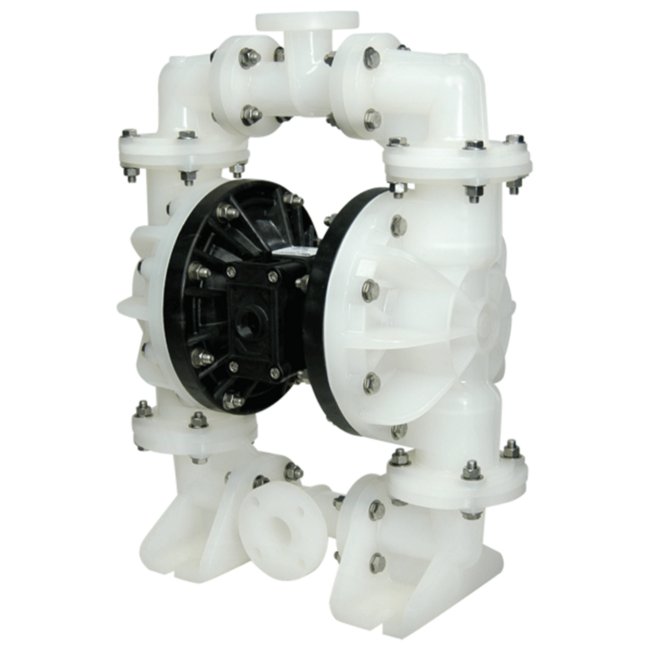

PVDF Top Discharge Ball Valve Pump, 1.5"
PVDF Top Discharge Ball Valve Pump, 1.5"
SKU:PRO-2ac110
Reliable PVDF Ball Valve Pump for moderate abrasives, top discharge for easy maintenance. Max flow rate 100 gpm.
Regular price
$3,199.99
Regular price
Sale price
$3,199.99
Unit price
per
Initiate Order
PVDF Top Discharge Ball Valve Pump, 1.5"
$3,199.99
Quantity: 1
Claim Your Seller Account
PVDF Top Discharge Ball Valve Pump, 1.5"
$3,199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PVDF Top Discharge Ball Valve Pump is designed for handling moderately abrasive fluids and solids with precision. Featuring a durable PVDF construction, this pump ensures reliability and efficiency for intermittent usage. With a max flow rate of 100 gpm, it meets the demanding standards of waste water applications. The top discharge porting position enhances ease of installation and maintenance, making it an ideal choice for institutional settings.
Product Specifications
Curves 0

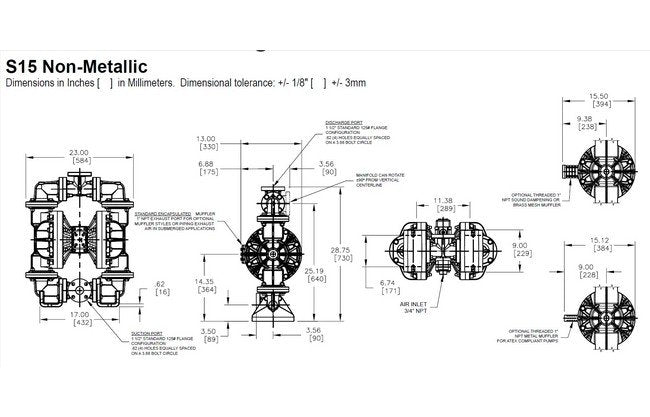

Dimensions 0
Dimensions
Specifications Check Valve Seat
PVDF
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Displacement Per Stroke
0.43 gal | 1.63 lit
Specifications Height
29 in | 730.25 mm
Specifications Inlet Size
1.5 Universal ANSI/DIN Flange in | 38 Universal ANSI/DIN Flange mm
Specifications Length
23 in | 0.5842 m | 584.20 mm
Specifications Max Flow Rate
100 gpm | 6000.00 gph | 378.54 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Porting Position
Top Discharge
Specifications Sku
WRS15B3K1KPUS000SP
Specifications Solids Handling
0.47 in | 12 mm
Specifications Weight
112 lbs | 50.80 kg | 50.80 Kilogram
Specifications Wetted Moc
PVDF
Specifications Width
13 in | 0.3302 m | 330.20 mm
Category 6
Standard Duty Diaphragm Pumps
