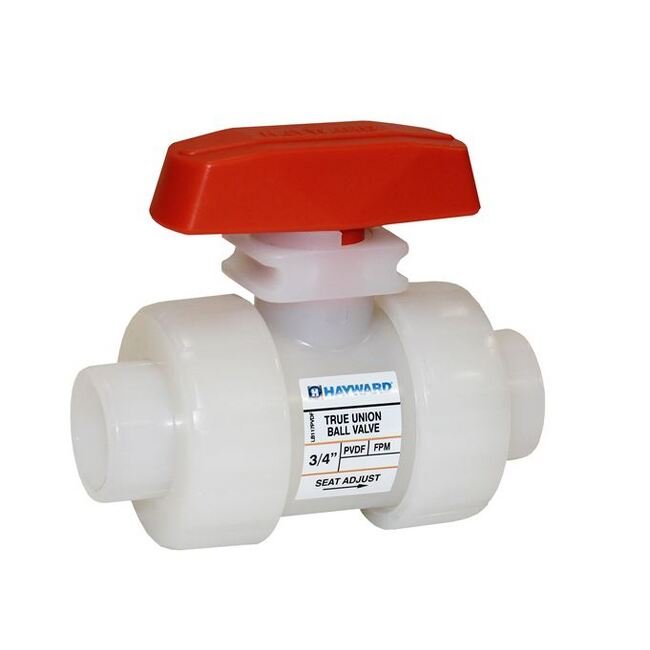

PVDF True Union Ball Valve 3/4" Threaded End
PVDF True Union Ball Valve 3/4" Threaded End
SKU:TRU-b8709c
Precisely control flow with our PVDF True Union Ball Valve - perfect for government and industrial use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PVDF True Union Ball Valve 3/4" Threaded End
$29.99
Quantity: 1
Claim Your Seller Account
PVDF True Union Ball Valve 3/4" Threaded End
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PVDF True Union Ball Valve in 3/4" size features FPM O-rings, ensuring a tight seal for industrial applications. With a pressure rating of 150 psi, bi-directional flow configuration, and a Cv Coefficient of 16.0, this valve is ideal for precise flow control. Compliant with NSF/ANSI 61-G Listed standards, it meets stringent quality requirements for government and institutional procurement. Its threaded end connections make installation convenient and secure.
Product Specifications
Dimensional Attributes A
4.84 in | 122.94 mm
Dimensional Attributes B
0.74 in | 18.80 mm
Dimensional Attributes C
2.59 in | 65.79 mm
Dimensional Attributes D1
2.98 in | 75.69 mm
Dimensional Attributes D2
2.77 in | 70.36 mm
Dimensional Attributes H
3.00 in | 76.20 mm
Specifications Body Material
PVDF
Specifications Cv Coefficient
16.0
Specifications End Connection
Threaded
Specifications Flow Configuration
Bi-directional
Specifications Pressure Rating Non Shock
150 psi/ 10 bar
Specifications Seals
FPM
Specifications Series
TB
Specifications Size
3/4"
Specifications Weight
0.75 lb | 0.34 kg
