PVDF True Union Ball Valve - Threaded 1/2" with FPM O-rings

Name: PVDF True Union Ball Valve - Threaded 1/2" with FPM O-rings
Brand: Hayward Flow Control
SKU: TRU-3c5a43
Price: 29.99 USD
Availability: OutOfStock

SKU:TRU-3c5a43

Reliable PVDF True Union Ball Valve with FPM O-rings & threaded end, NSF/ANSI 61-G compliant

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

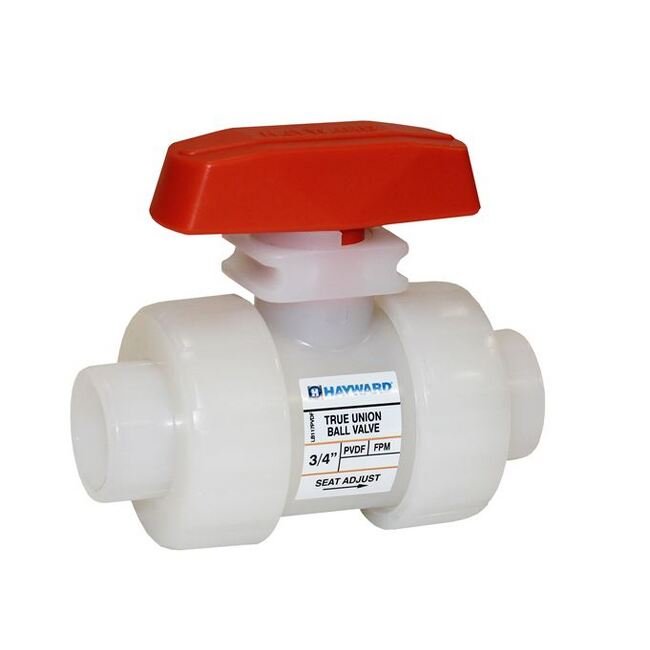

The PVDF True Union Ball Valve, part of the TB Series, is designed for durability and versatility. Constructed with high-quality PVDF material, FPM O-rings, and threaded end connections, this valve ensures reliable performance in a variety of applications. With a pressure rating of 150 psi, bi-directional flow configuration, and a Cv Coefficient of 8.0, it offers precision control and efficiency. Compliant with NSF/ANSI 61-G standards, this valve meets the stringent requirements of institutional and government procurement.

Product Specifications

Dimensional Attributes A

4.65 in | 118.11 mm

Dimensional Attributes B

0.49 in | 12.45 mm

Dimensional Attributes C

2.23 in | 56.64 mm

Dimensional Attributes D1

2.80 in | 71.12 mm

Dimensional Attributes D2

2.62 in | 66.55 mm

Dimensional Attributes H

2.82 in | 71.63 mm

Specifications Body Material

PVDF

Specifications Cv Coefficient

8.0

Specifications End Connection

Threaded

Specifications Flow Configuration

Bi-directional

Specifications Pressure Rating Non Shock

150 psi/ 10 bar

Specifications Seals

FPM

Specifications Series

Specifications Size

1/2"

Specifications Weight

0.75 lb | 0.34 kg
