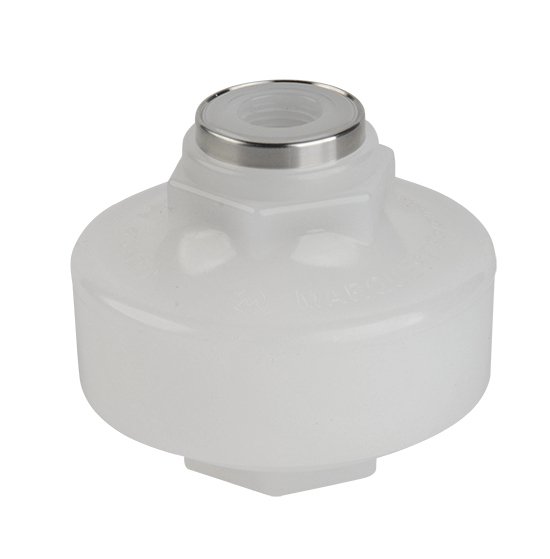

PVDF Tuff Guard Gauge Isolator
PVDF Tuff Guard Gauge Isolator
SKU:GAU-07211d
Protect & isolate instruments with PVDF Tuff Guard Gauge Isolator. FDA, USDA, USP compliant. Accurate pressure transmission. Durable & self-venting design.
Regular price
$167.50
Regular price
Sale price
$167.50
Unit price
per
Initiate Order
PVDF Tuff Guard Gauge Isolator
$167.50
Quantity: 1
Claim Your Seller Account
PVDF Tuff Guard Gauge Isolator
$167.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PVDF Tuff Guard Gauge Isolator, featuring a Viton Diaphragm and 1/4" Vent Fem NPT x 1/4" Fem NPT Inlet Process connection, is an essential component for protecting and isolating pressure sensing instruments. Constructed with FDA, USDA, and USP compliant PVDF material, this isolator offers accurate pressure transmission with its convoluted diaphragm design. The reinforced instrument and process connections ensure durability and reliability, while the self-venting internal shape allows for easy filling and maintenance. With a low-profile design to eliminate dead volume, this isolator comes with a 3-year product warranty for added peace of mind.
Product Specifications
Specifications Instrument X Process Conn
1/4" Vent x 1/4" Female NPT
Specifications List Price
167.5 USD
Specifications Materials
PVDF, Viton Diaphragm
Specifications Max Psi
250 PSI
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
