PVDF Tuff Guard Gauge Isolator with 0-30 PSI Process Gauge
PVDF Tuff Guard Gauge Isolator with 0-30 PSI Process Gauge
SKU:GAU-56191b
Precise PVDF Tuff Guard Gauge Isolator with Viton Diaphragm and 0-30 PSI Process Gauge, designed for accuracy and durability.
Regular price
$740.50
Regular price
Sale price
$740.50
Unit price
per
Initiate Order
PVDF Tuff Guard Gauge Isolator with 0-30 PSI Process Gauge
$740.50
Quantity: 1
Claim Your Seller Account
PVDF Tuff Guard Gauge Isolator with 0-30 PSI Process Gauge
$740.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

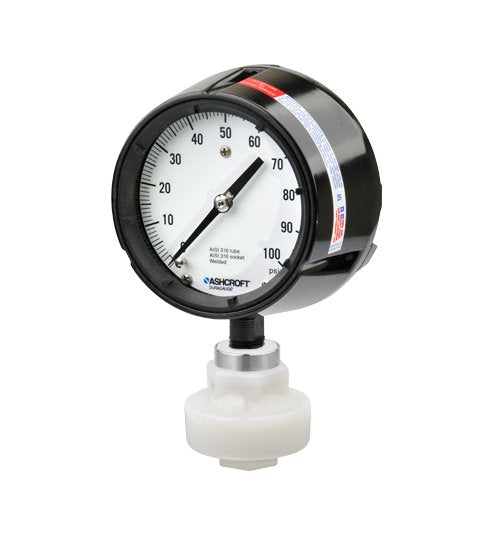

The PVDF Tuff Guard Gauge Isolator features a convoluted Viton diaphragm for precise pressure transmission and a stainless steel reinforced instrument connection. It boasts a sturdy design with compressive spoke ribs and ANSI Schedule 120 compliant wall thickness. The assembly includes a 4.5" Ashcroft Duragauge Process Gauge vacuum assembled, tested, and calibrated, filled with glycerin for smooth operation. Designed for easy maintenance, this isolator comes with a replaceable diaphragm, low profile design to minimize dead volume, and integral wrench provisions. The Duragauge Pressure Gauge offers a 3-year warranty, featuring a patented Duratube construction for longevity and corrosion resistance.
Product Specifications
Specifications Inlet Connection
1/4" Female NPT
Specifications List Price
740.5 USD
Specifications Materials
PVDF, Viton Diaphragm
Specifications Pressure Range
0-30 PSI
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
