PVDF Tuff Guard Gauge Isolator with PTFE Diaphragm and 0-200 PSI Process Gauge
PVDF Tuff Guard Gauge Isolator with PTFE Diaphragm and 0-200 PSI Process Gauge
SKU:GAU-167dca
High precision PVDF Tuff Guard Gauge Isolator with PTFE Diaphragm and 0-200 PSI Process Gauge for reliable pressure monitoring.
Regular price
$740.50
Regular price
Sale price
$740.50
Unit price
per
Initiate Order
PVDF Tuff Guard Gauge Isolator with PTFE Diaphragm and 0-200 PSI Process Gauge
$740.50
Quantity: 1
Claim Your Seller Account
PVDF Tuff Guard Gauge Isolator with PTFE Diaphragm and 0-200 PSI Process Gauge
$740.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

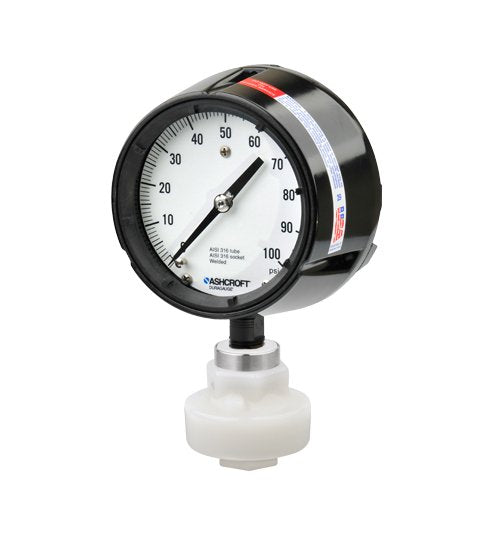

The PVDF Tuff Guard Gauge Isolator features a convoluted PTFE diaphragm for precise pressure transmission and a stainless steel reinforced instrument connection. It is designed with compressive spoke ribs for optimal stress transfer and ANSI Schedule 120 compliant wall thickness. The assembly includes a 4.5" Ashcroft Duragauge Process Gauge, glycerin-filled for enhanced performance, and calibrated for accuracy. With a low profile design to eliminate dead volume and integral wrench provisions for easy maintenance, this assembly guarantees durability and reliability. Suitable for a variety of applications, this assembly comes with a 3-year warranty.
Product Specifications
Specifications Inlet Connection
1/4" Female NPT
Specifications List Price
740.5 USD
Specifications Materials
PVDF, PTFE Diaphragm
Specifications Pressure Range
0-200 PSI
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
