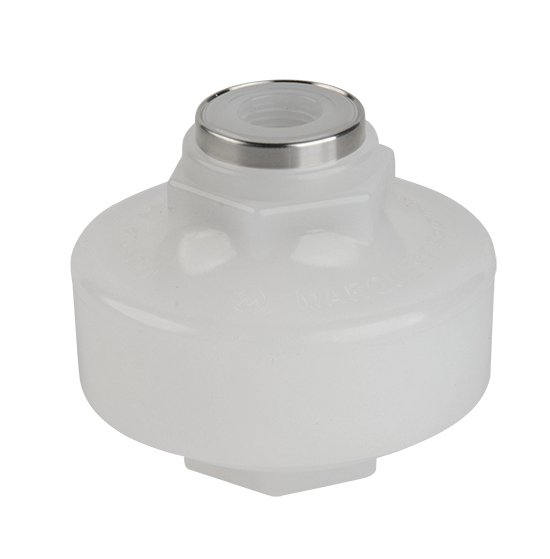

PVDF Tuff Guard Isolator - 1/4" Vent x 1/4" NPT, Modified PTFE Diaphragm

Name: PVDF Tuff Guard Isolator - 1/4" Vent x 1/4" NPT, Modified PTFE Diaphragm
Brand: Marquest Scientific, Inc.
SKU: GAU-04df11
Price: 167.5 USD
Availability: OutOfStock

SKU:GAU-04df11

Precision PVDF Tuff Guard Isolator with Modified PTFE Diaphragm for accurate pressure sensing applications.

$167.50

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

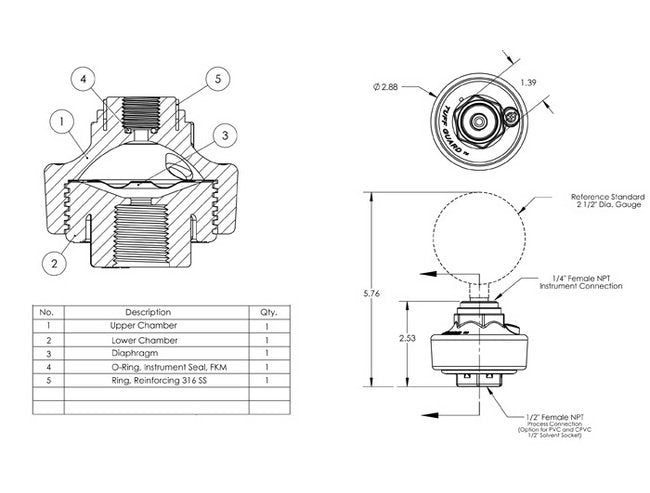

The PVDF Tuff Guard Isolator with a modified PTFE diaphragm is designed for precision pressure sensing applications. This isolator features a 1/4" Vent x 1/4" Female NPT connection, ensuring reliable pressure transmission. Constructed from PVDF material meeting FDA, USDA, and USP standards, it offers exceptional durability. The reinforced instrument and process connections provide robustness, while the low profile design eliminates dead volume. With a self-venting internal shape and integrated wrench provisions, maintenance is convenient. Ideal for industries requiring accurate pressure control and instrument protection.

Product Specifications

Specifications Instrument X Process Conn

1/4" Vent x 1/4" Female NPT

Specifications List Price

167.5 USD

Specifications Materials

PVDF, PTFE Diaphragm

Specifications Max Psi

250 PSI

Specifications Shipping Note

We will let you know the shipping charges once we receive the order.
