PVDF Tuff Guard Isolator Assembly with 1/4" Female NPT Inlet and Viton Diaphragm

Name: PVDF Tuff Guard Isolator Assembly with 1/4" Female NPT Inlet and Viton Diaphragm
Brand: Marquest Scientific, Inc.
SKU: GAU-90425e
Price: 740.5 USD
Availability: OutOfStock

SKU:GAU-90425e

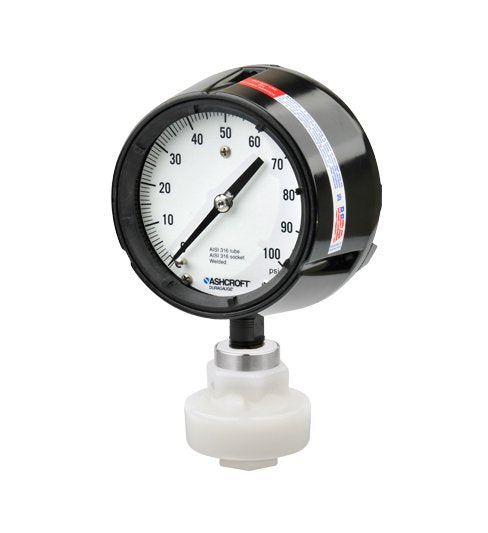

Reliable PVDF Tuff Guard Isolator Assembly with Viton Diaphragm and 4.5" Duragauge Process Gauge

$740.50

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PVDF Tuff Guard Isolator Assembly features a convoluted Viton diaphragm for precise pressure transmission, ensuring accuracy and reliability. With a stainless steel reinforced instrument connection and compressive spoke ribs, this assembly is designed for durability. The reinforced process connection meets ANSI Schedule 120 standards, offering high tensile stress resistance. Featuring a low profile design to eliminate dead volume, integral wrench provisions for easy maintenance, and a replaceable diaphragm, this assembly is a top choice for institutional and government buyers seeking long-lasting performance. The included 4.5" Ashcroft Duragauge Process Gauge, assembled, tested, and calibrated, ensures accurate pressure readings in vacuum applications. Contact the factory for other fill fluid options.

Product Specifications

Specifications Inlet Connection

1/4" Female NPT

Specifications List Price

740.5 USD

Specifications Materials

PVDF, Viton Diaphragm

Specifications Pressure Range

0-160 PSI

Specifications Shipping Note

We will let you know the shipping charges once we receive the order.
